PageScope Web Connection Setting

bizhub PRO 920 20-35

SMB

SMB Scan

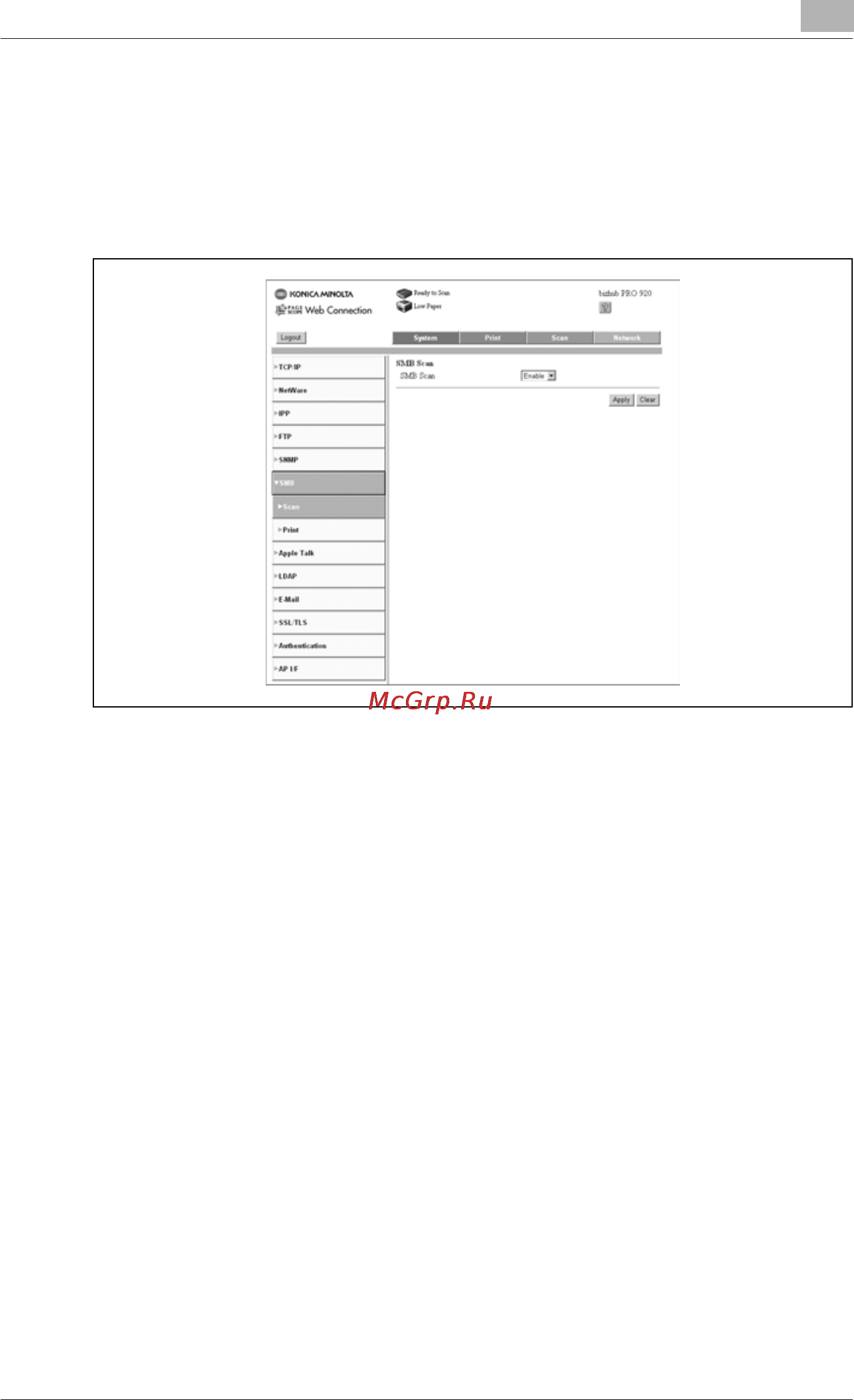

This screen appears when you click [SMB] on the [Network] tab, then click

[Scan] under the [SMB] menu. The screen is used to enter and confirm

settings concerning SMB scan.

Description

- SMB Scan:

Select enable or disable.

- [Apply] button:

Click the button to apply the new settings.

- [Clear] button:

Click the button to clear the settings that were entered.
