PageScope Web Connection Setting

20-34 bizhub PRO 920

SNMP

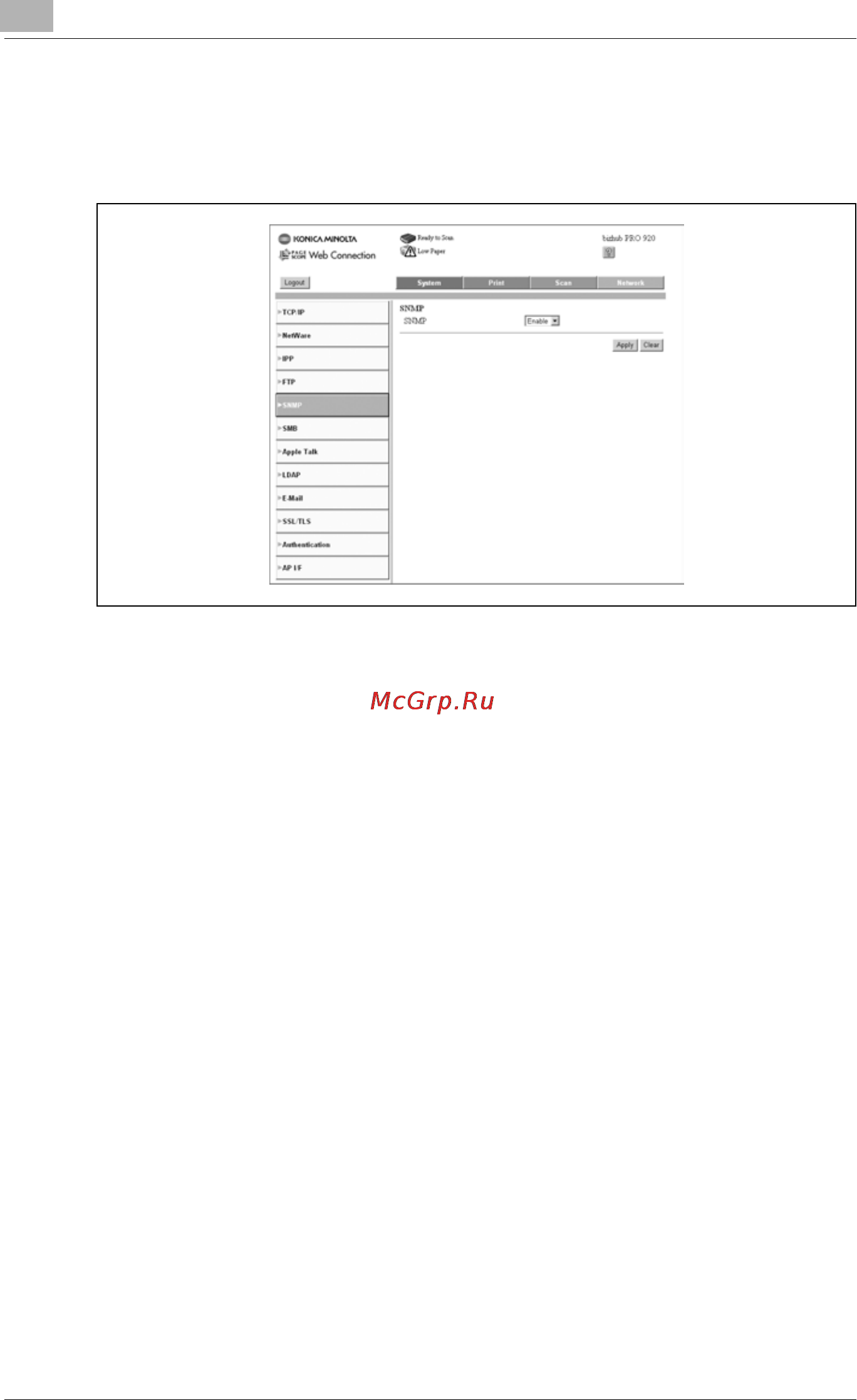

This screen appears when you click [SNMP] on the [Network] tab. The screen

is used to enter and confirm settings concerning SNMP.

Description

- SNMP: Select enable or disable.

- [Apply] button:

Click the button to apply the new settings.

- [Clear] button:

Click the button to clear the settings that were entered.
