bizhub PRO 920 11-89

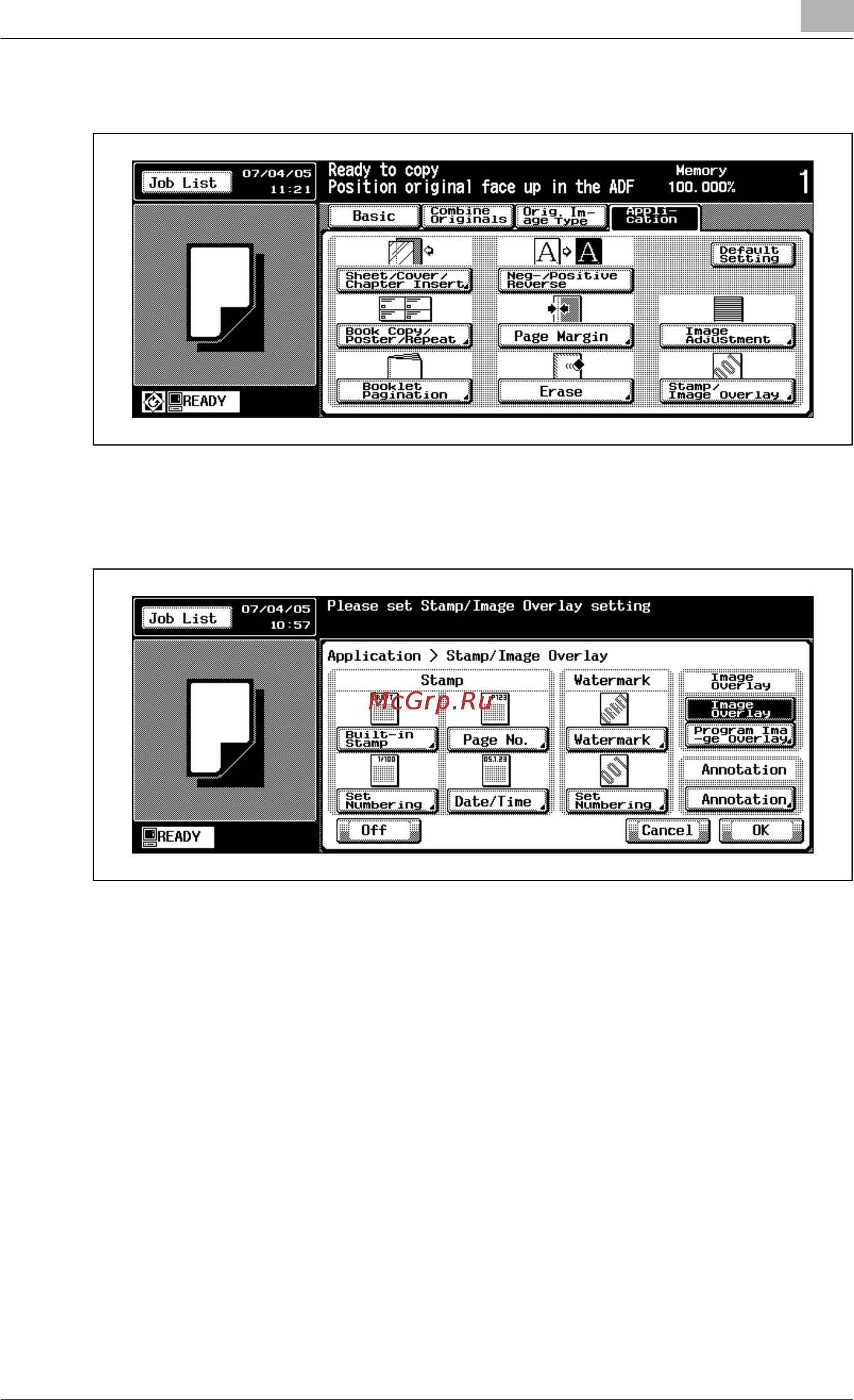

2 Touch [Stamp/Image Overlay].

The Stamp/Image Overlay Screen will be displayed.

3 Touch [Image Overlay] to highlight it.

Do you want to cancel the “Image Overlay” function?

% Touch [Image Overlay] again.

4 Touch [OK] to restore the Application Screen.

5 Touch [Basic] to restore the Basic Screen.

6 Select the desired paper size and magnification on the Basic Screen.

7 Enter the desired print quantity from the control panel keypad.

8 Position the overlaying original.

– Position the original FACE up in the document feeder or FACE

DOWN on the original glass.

9 Press [Start] to scan.
