Applications

11-92 bizhub PRO 920

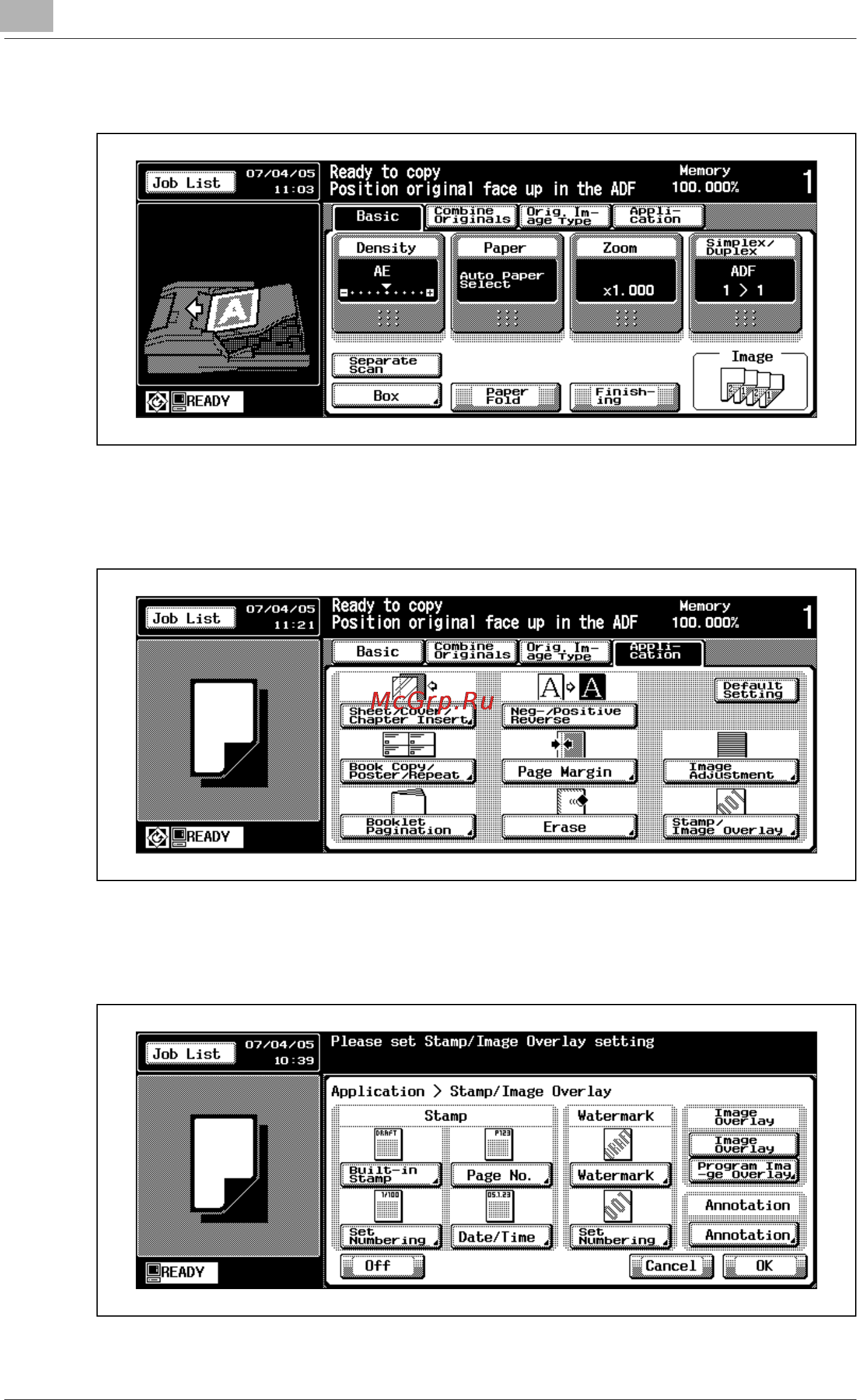

1 Touch [Application].

The Application Screen will be displayed.

2 Touch [Stamp/Image Overlay].

The Stamp/Image Overlay Screen will be displayed.

3 Touch [Program Image Overlay].

The Overlaying Image Selection Screen will be displayed.
