Before Making Copies

bizhub PRO 920 8-13

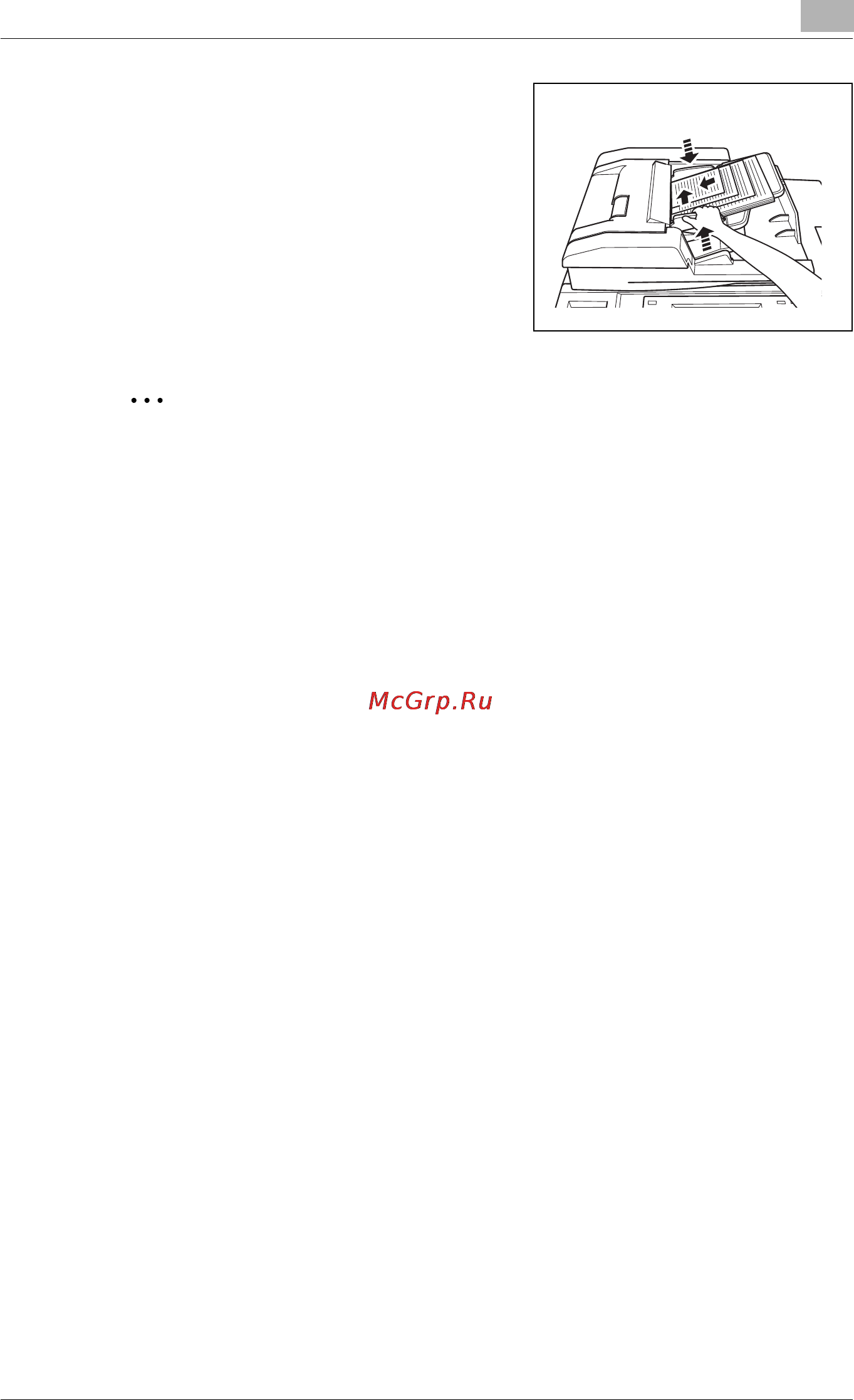

3 Adjust paper guides.

Reminder

Do not set more than 100 originals or over the limit line indicated on the

paper guides; otherwise a paper misfeed will occur.

Once closed, do not open the document feeder, otherwise the selected

copy conditions may be altered automatically.

Detail

To use the Mixed Original mode, see procedure on page 10-13.

For available combinations of mixed originals, see "ADF Originals" on

page 3-12.
