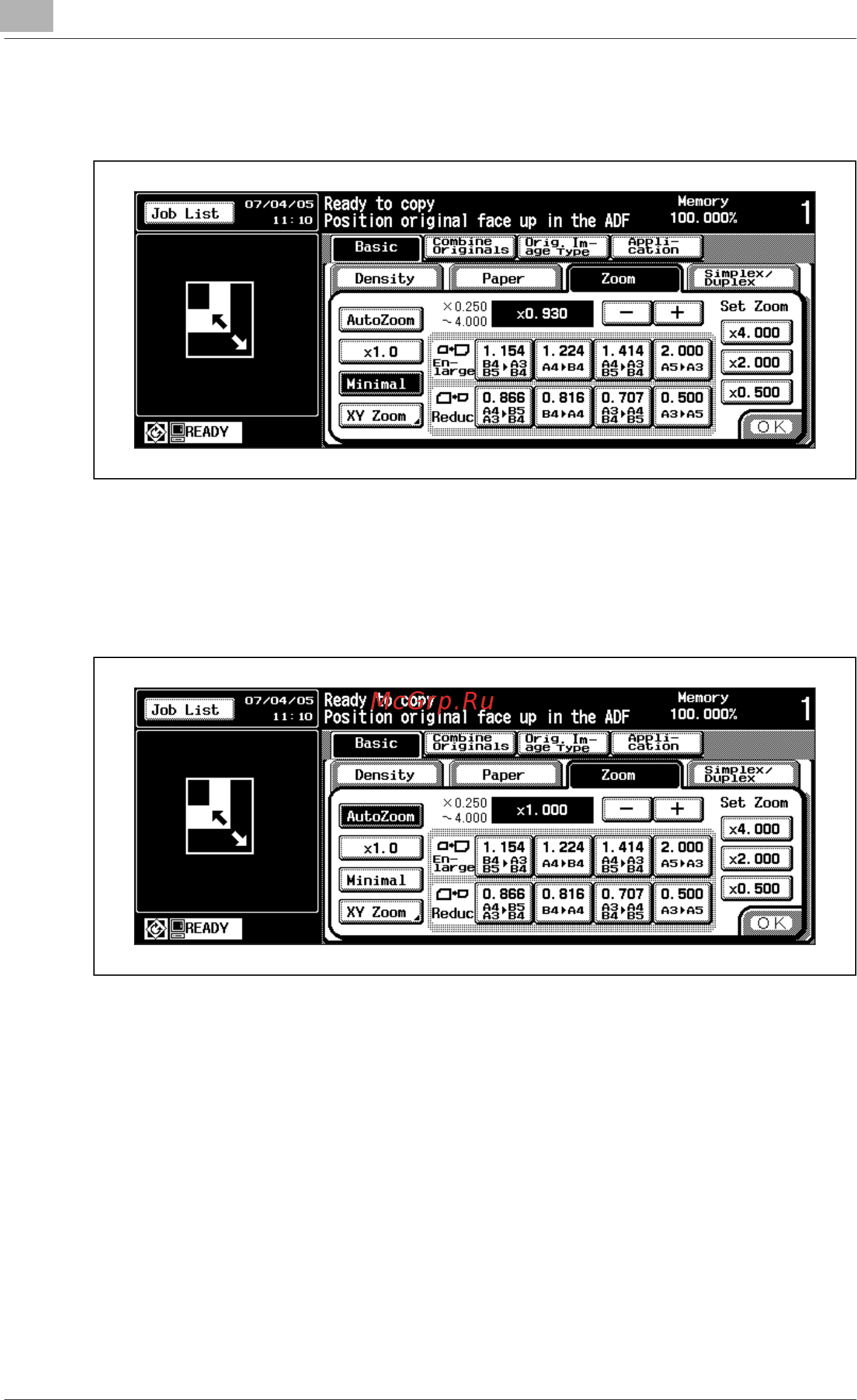

Basic Job Settings

9-28 bizhub PRO 920

–Minimal:

Touch [Minimal] to highlight it.

– Auto Zoom:

Touch [Auto Zoom] to highlight it. The machine will automatically

select the appropriate magnification ratio for paper size loaded in

the tray of top priority.

Did you enter a wrong number using keypad?

% Continue by entering the correct number.

Do you want to restore the previous setting?

% Touch [Cancel].
