Basic Job Settings

bizhub PRO 920 9-31

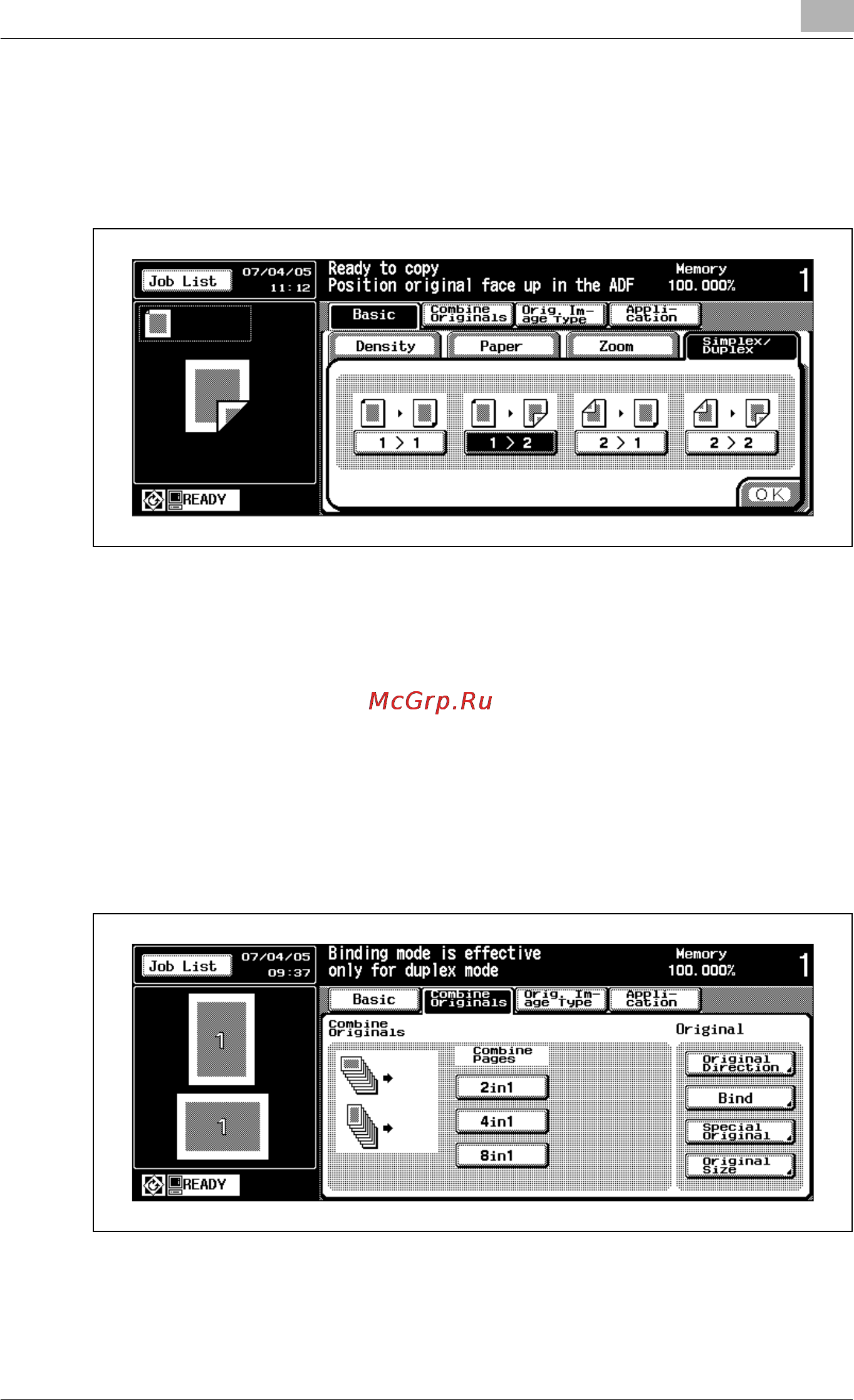

1 Touch [Simplex/Duplex] on the Basic Screen.

The Simplex/Duplex setting menu will be displayed.

2 Touch [1-2] or [2-2] to highlight it.

3 Touch [OK] on the Simplex/Duplex setting menu.

The Basic Screen will be restored.

Do you want to start copying immediately?

% You don’t have to touch [OK] to restore the Basic Screen. Position

original(s) directly, then press [Start].

4 Specify the original set direction and binding direction.

– Touch [Combine Originals] to display the Combine Originals setting

menu.
