Basic Job Settings

bizhub PRO 920 9-37

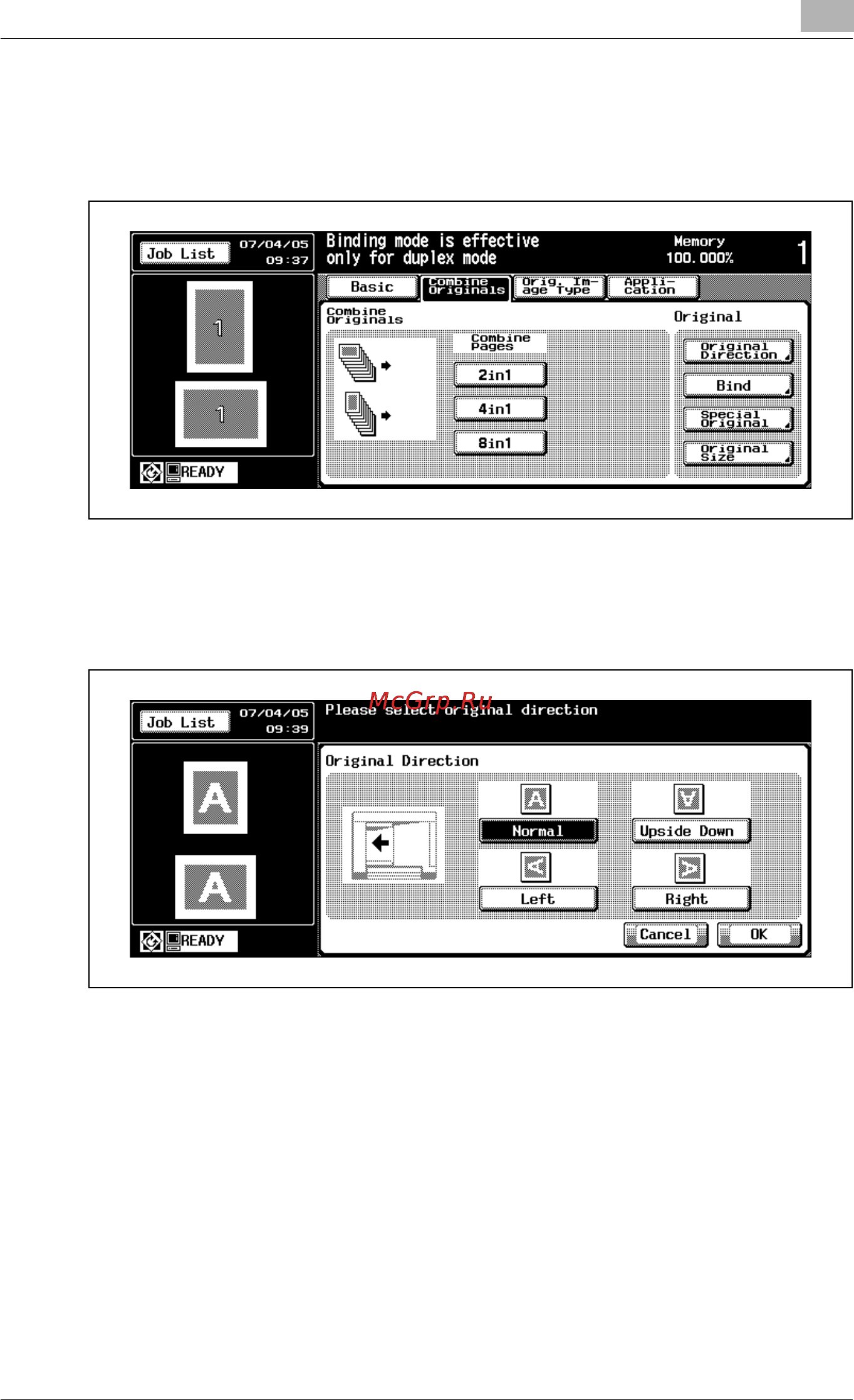

4 Specify the original set direction and binding direction.

– Touch [Combine Originals] to display the Combine Originals setting

menu.

– Touch [Original Direction] to display the Original Direction Screen,

then touch the desired original direction key to highlight it. Touch

[OK] to return to the Combine Originals setting menu.
