Original Setting

10-14 bizhub PRO 920

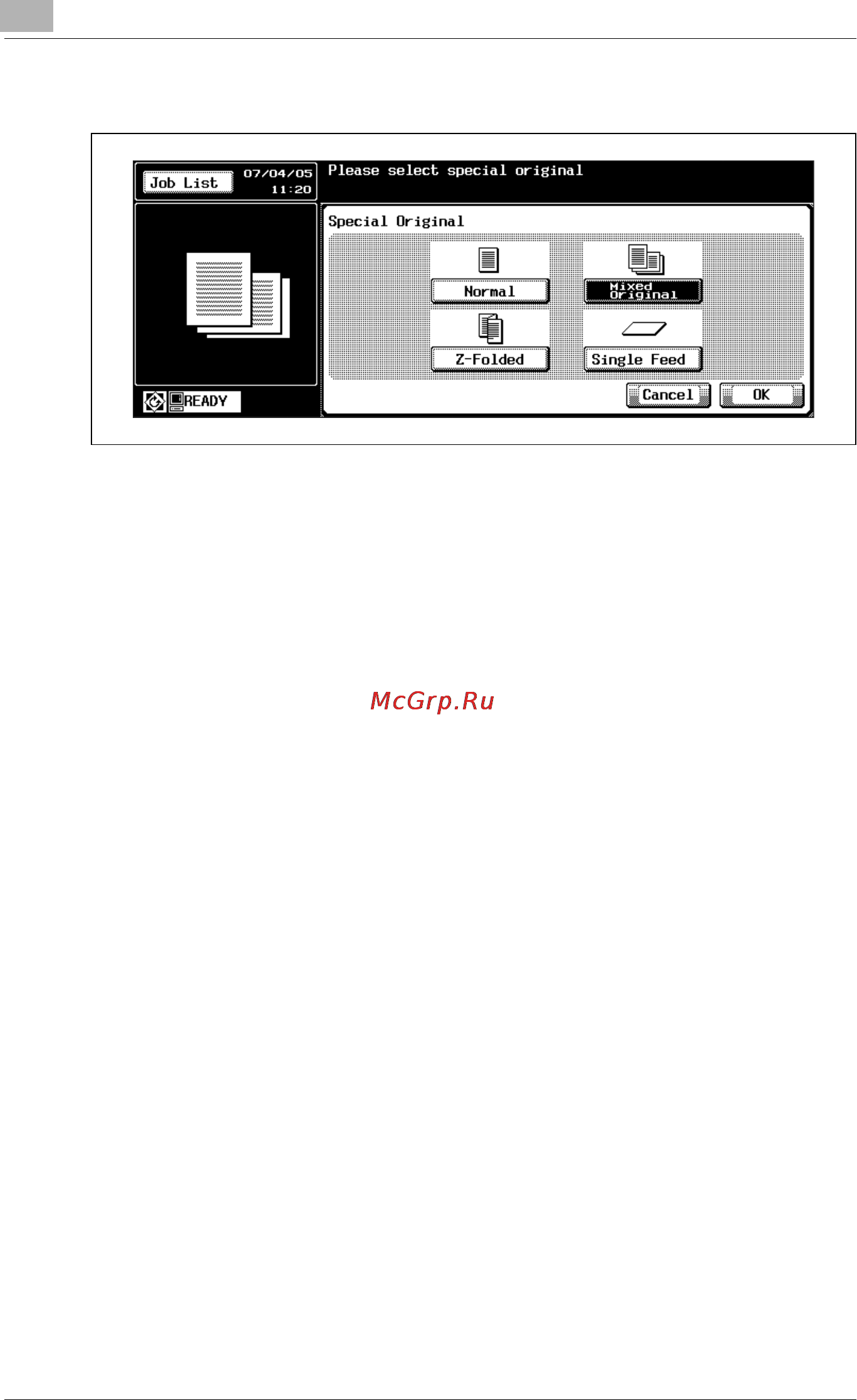

3 Touch [Mixed Original] to highlight it.

4 Touch [OK] on the Special Original Screen.

The Combine Originals setting menu will be restored.

Do you want to restore the previous setting?

% Touch [Cancel].

Do you want to select additional copy conditions?

% Touch [Basic] or any other tab key to continue job settings.

5 Enter the desired print quantity, position originals FACE UP in the

document feeder, then press [Start].

– Arrange the mixed size originals aligning the left and rear sides.

Detail

See "To position originals in Mixed Original mode" on page 8-12 for

details on positioning mixed originals.
