Applications

11-16 bizhub PRO 920

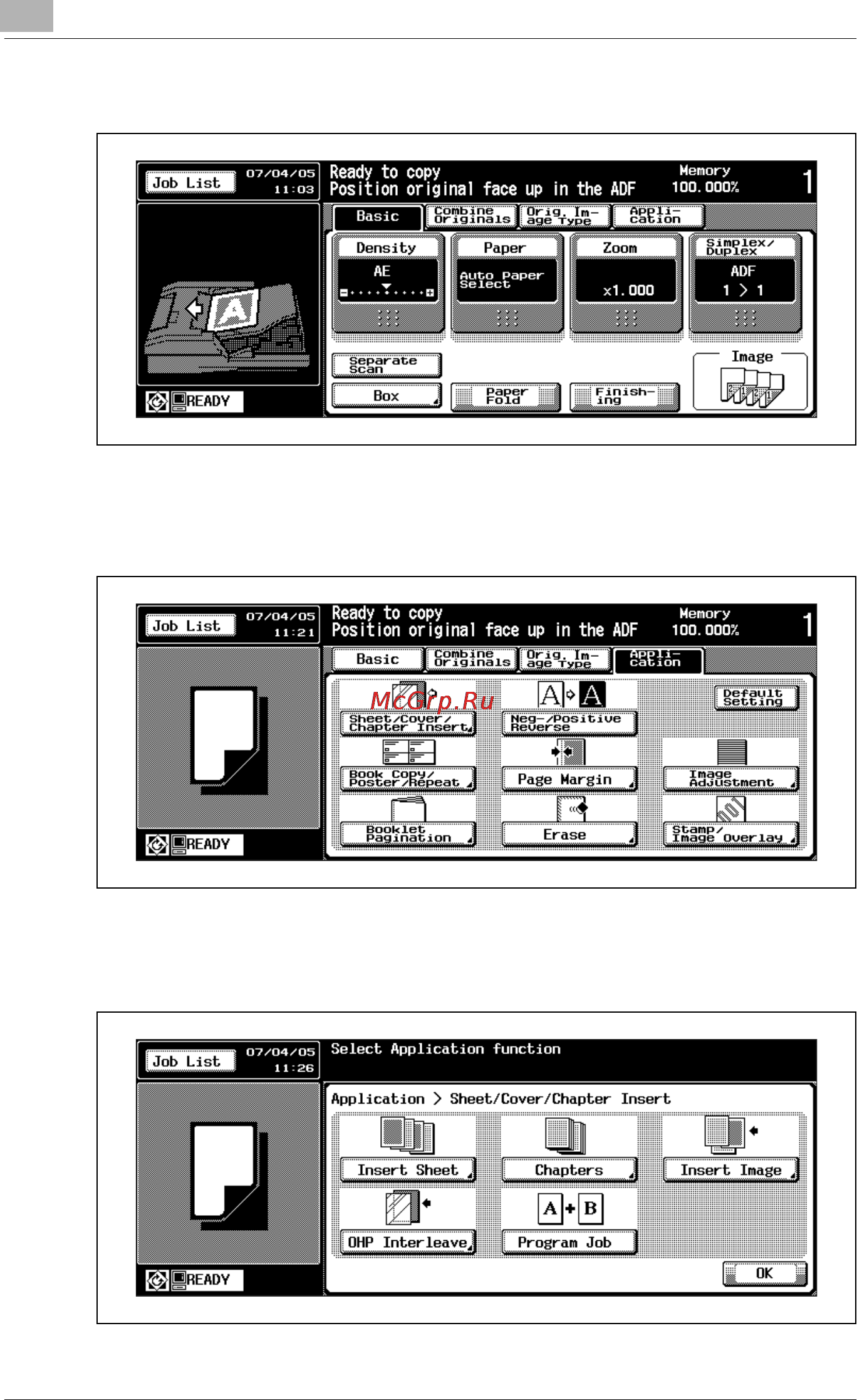

1 Touch [Application].

The Application Screen will be displayed.

2 Touch [Sheet/Cover/Chapter Insert].

The Sheet/Cover/Chapter Insert Screen will be displayed.

3 Touch [Chapters].

The Chapters Screen will be displayed.
