Applications

11-26 bizhub PRO 920

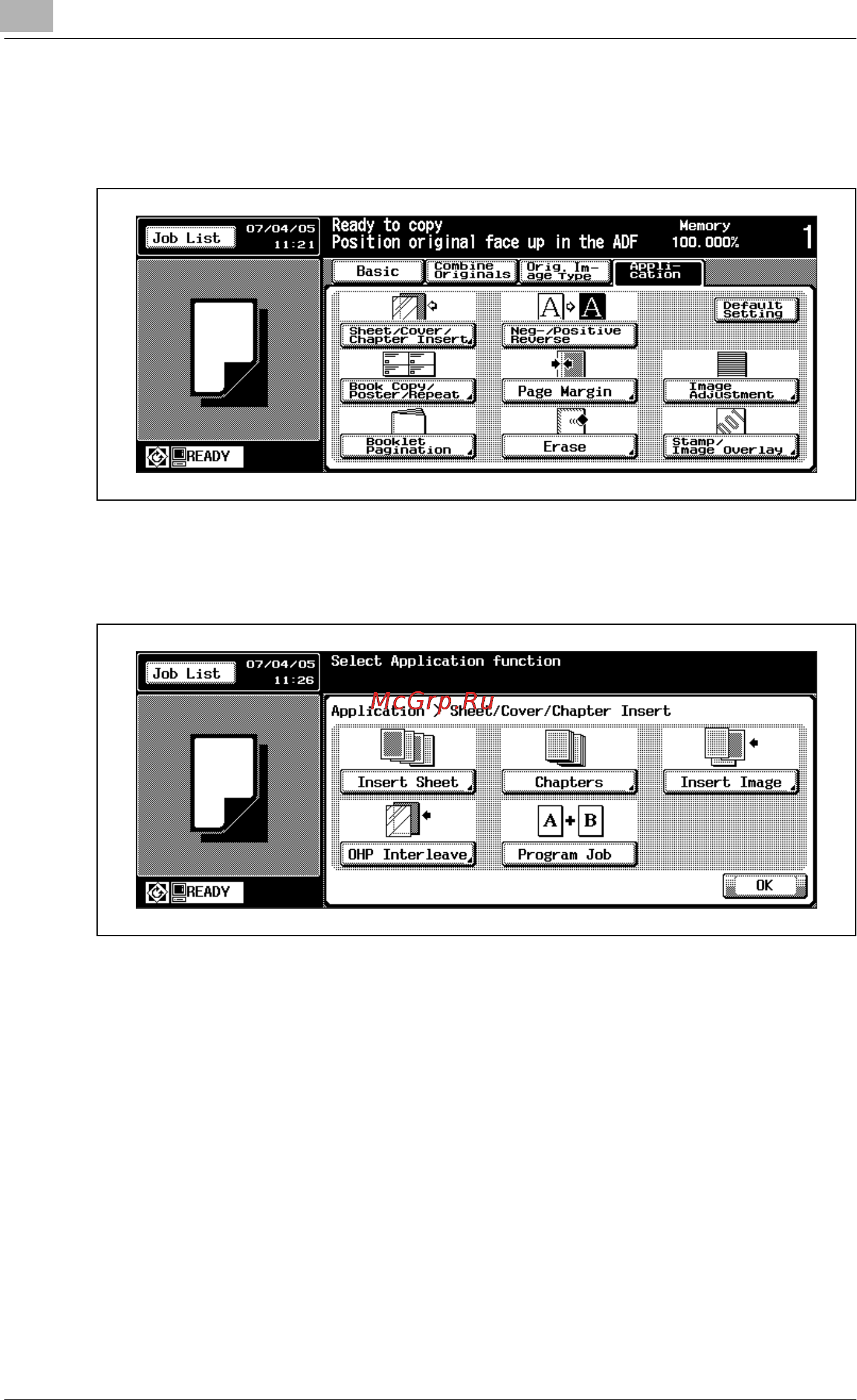

The Application Screen will be displayed.

2 Touch [Sheet/Cover/Chapter Insert].

The Sheet/Cover/Chapter Insert Screen will be displayed.

3 Touch [Program Job].

The key will be highlighted.

4 Touch [OK] to restore the Application Screen.

5 Touch [Basic] to restore the Basic Screen.

The [Separate Scan] key on the Basic Screen appears highlighted to

show that the Separate Scan mode is automatically selected.

6 Select the desired copy conditions.
