Applications

11-46 bizhub PRO 920

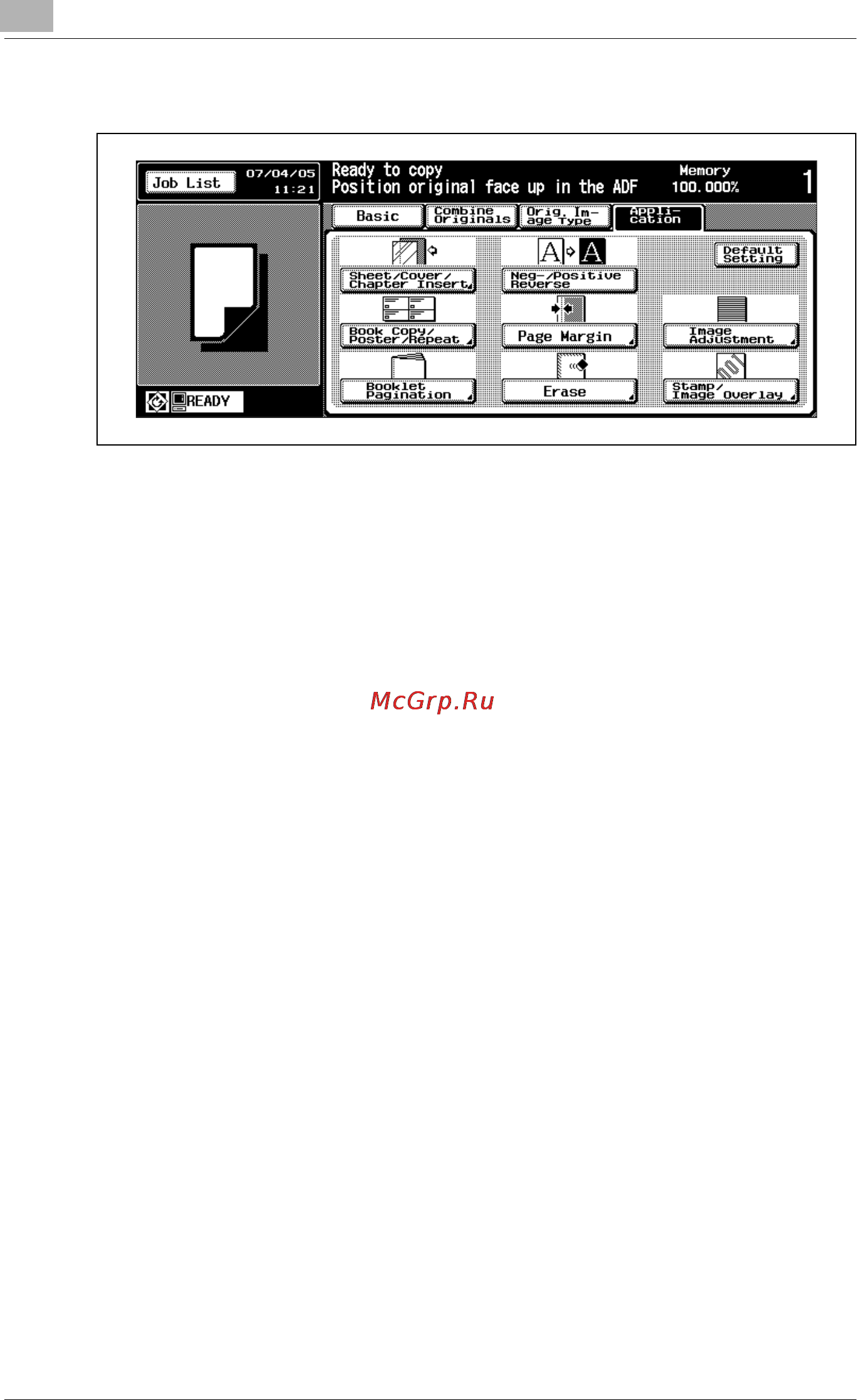

2 Touch [Neg-/Positive Reverse] to highlight it.

Do you want to cancel the “Neg-/Positive Reverse” function?

% Touch [Neg-/Positive Reverse] again.

3 Enter the desired print quantity from the control panel keypad.

4 Position original(s), then press [Start].
