Applications

bizhub PRO 920 11-63

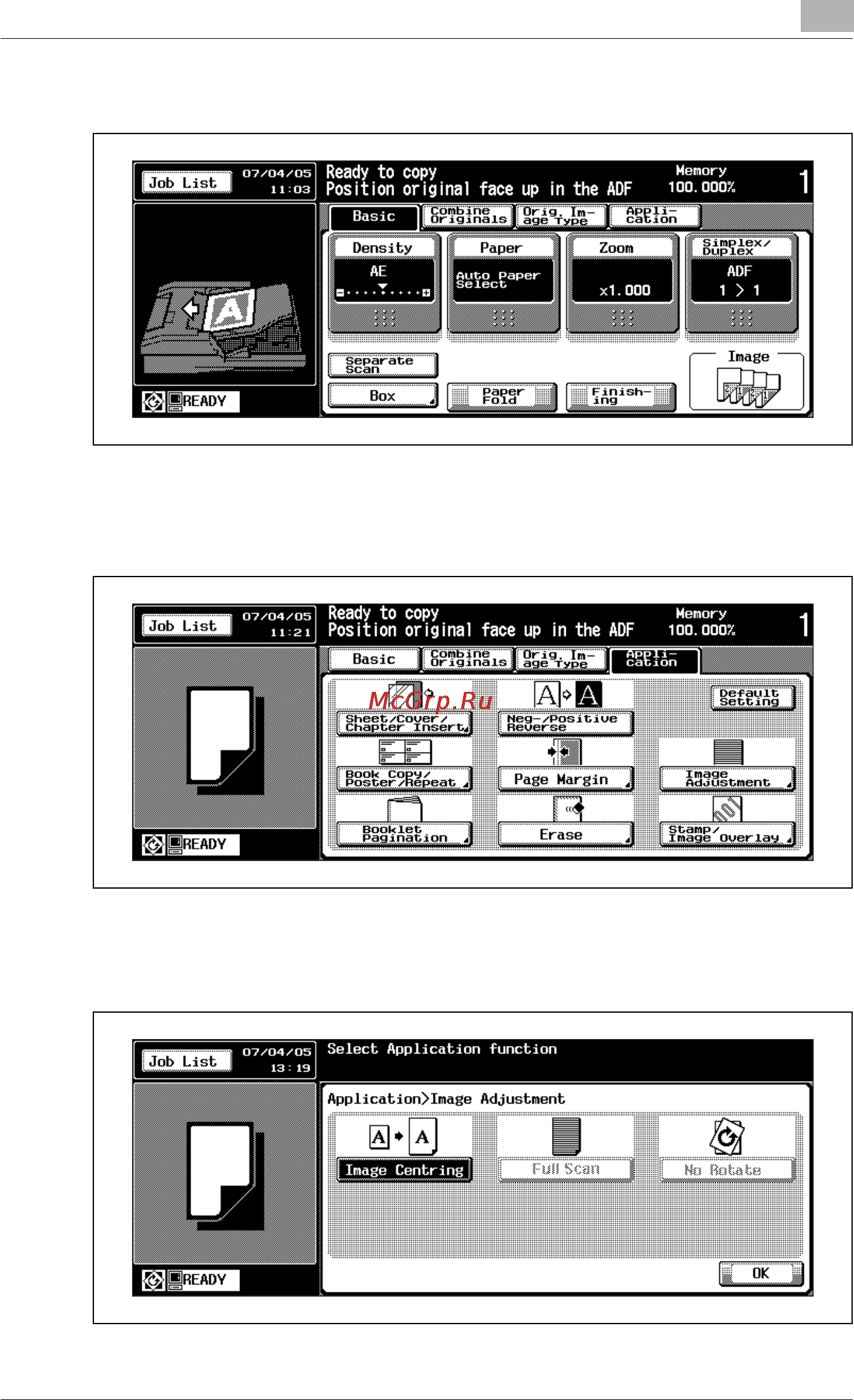

1 Touch [Application].

The Application Screen will be displayed.

2 Touch [Image Adjustment].

The Image Adjustment Screen will be displayed.

3 Touch [Image Centring] to highlight it.
