11-70 bizhub PRO 920

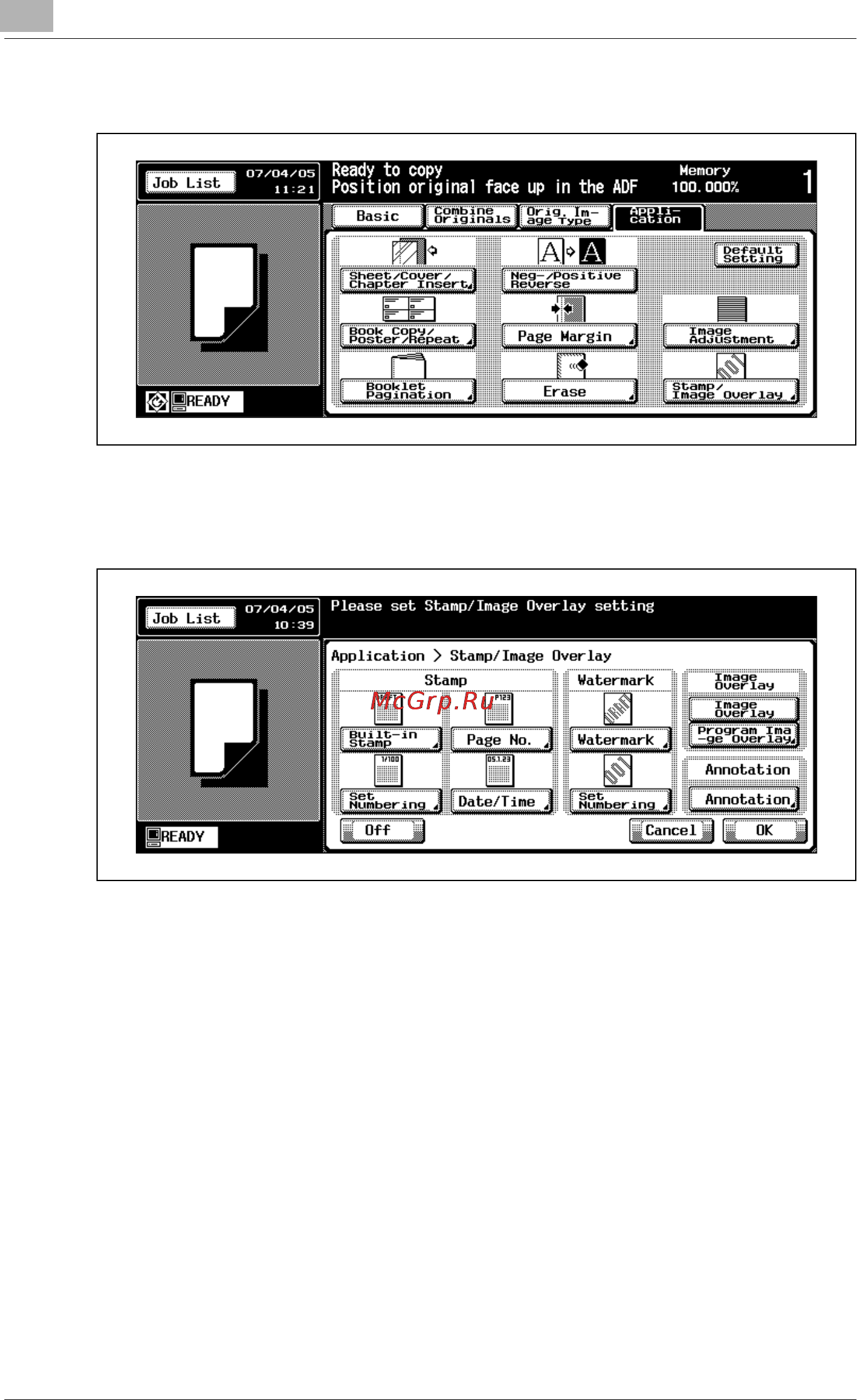

2 Touch [Stamp/Image Overlay].

The Stamp/Image Overlay Screen will be displayed.

3 Touch to select the desired key in the Stamp area.

The subsequent screen will be displayed to allow you to specify the

selected stamp type.
