11-78 bizhub PRO 920

9 Enter the desired print quantity, position original(s), then press [Start].

Detail

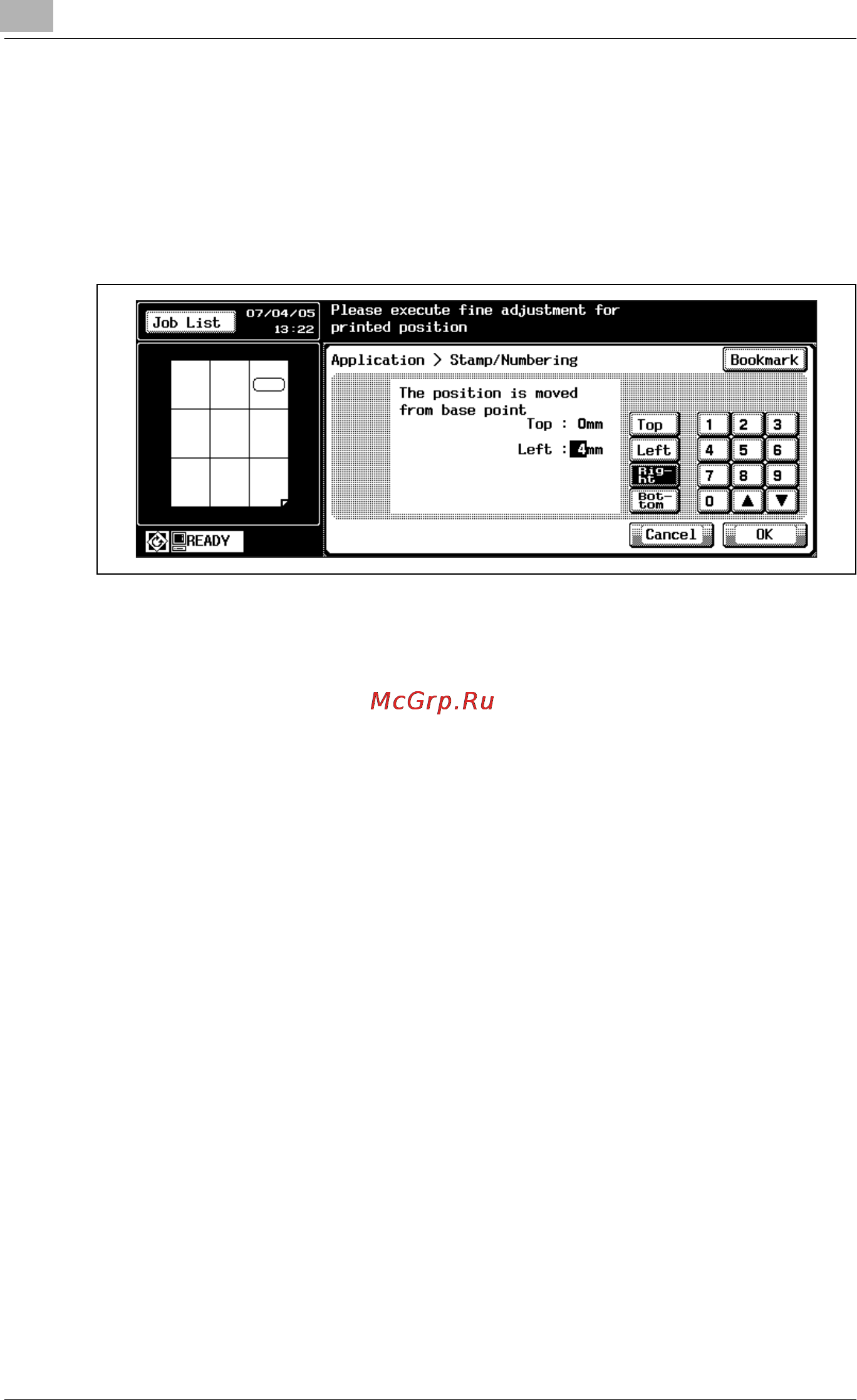

When [Fine Adjustment] is touched, the Fine Adjustment Setting Screen

will be displayed.

Touch [Top], [Left], [Right], or [Bottom] to specify the direction, then use

the touch panel keypad or up/down arrow key to enter the desired

amount, from 0 to 50 mm.

Touch [OK] to return to the previous screen.
