Finishing / Paper Fold
12-36 bizhub PRO 920

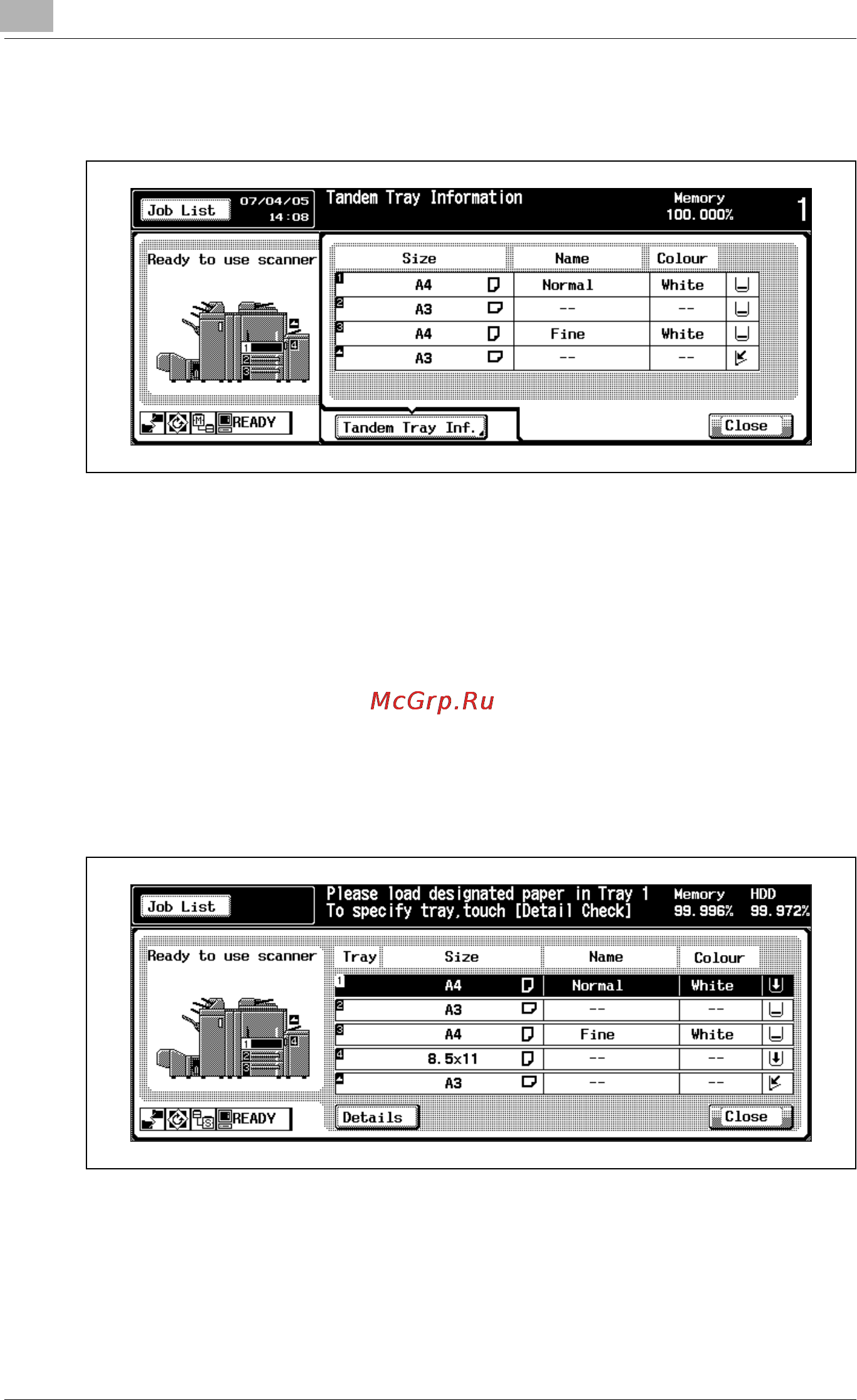

– Touch [Tandem Tray Inf.] to check the tray information of the other
machine working in tandem.
5 Enter print quantity on the master machine, using the keypad.
– When a print quantity amount of 100 is entered, the master and
tandem machines will each copy and output 50 sets.
6 Position original(s) FACE UP in the document feeder or FACE DOWN
on the original glass of the master machine.
7 Press [Start] on the control panel of the master machine.
– The Sub icon will display on the Machine Status Screen of the
tandem machine to indicate that the two copiers will start working
in tandem.
– The tandem mode will be released automatically when the tandem
mode copying is completed, and the Master and Sub icons will
disappear.
