Advanced Information

14-10 bizhub PRO 920

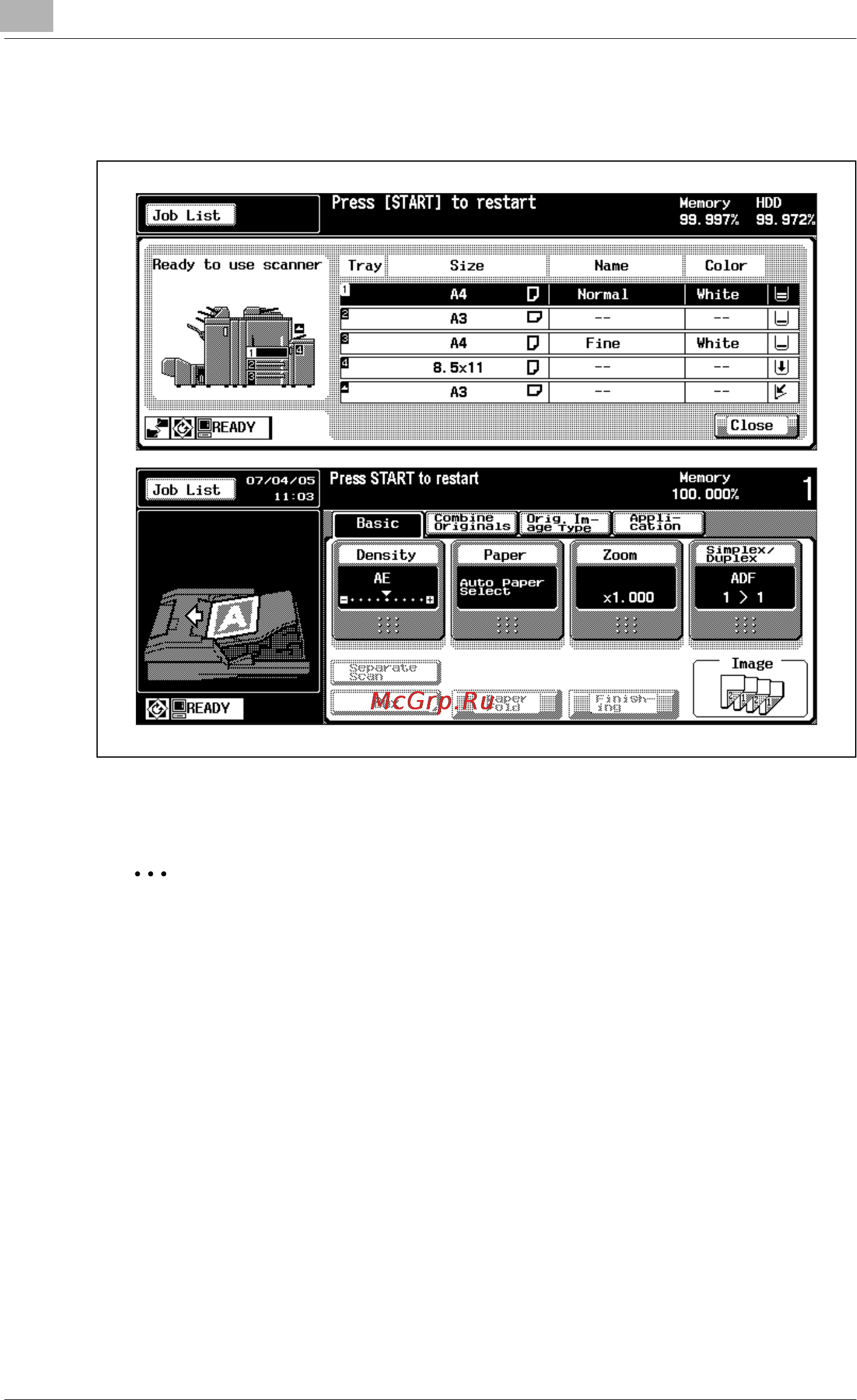

The [Interrupt] LED turns out and the Machine Status Screen will be

displayed.

5 Press [Start] to resume copying.

Note

To check settings for the previous job before restarting, touch [Close] on

the Machine Status Screen to display the Basic Screen.

Check the settings, then press [Start] to resume copying.
