Advanced Information

bizhub PRO 920 14-15

– Touching [Next] will display the keys from 11 to 20, and 21 to 30.

Touch [Next] or [Back] to display the desired key.

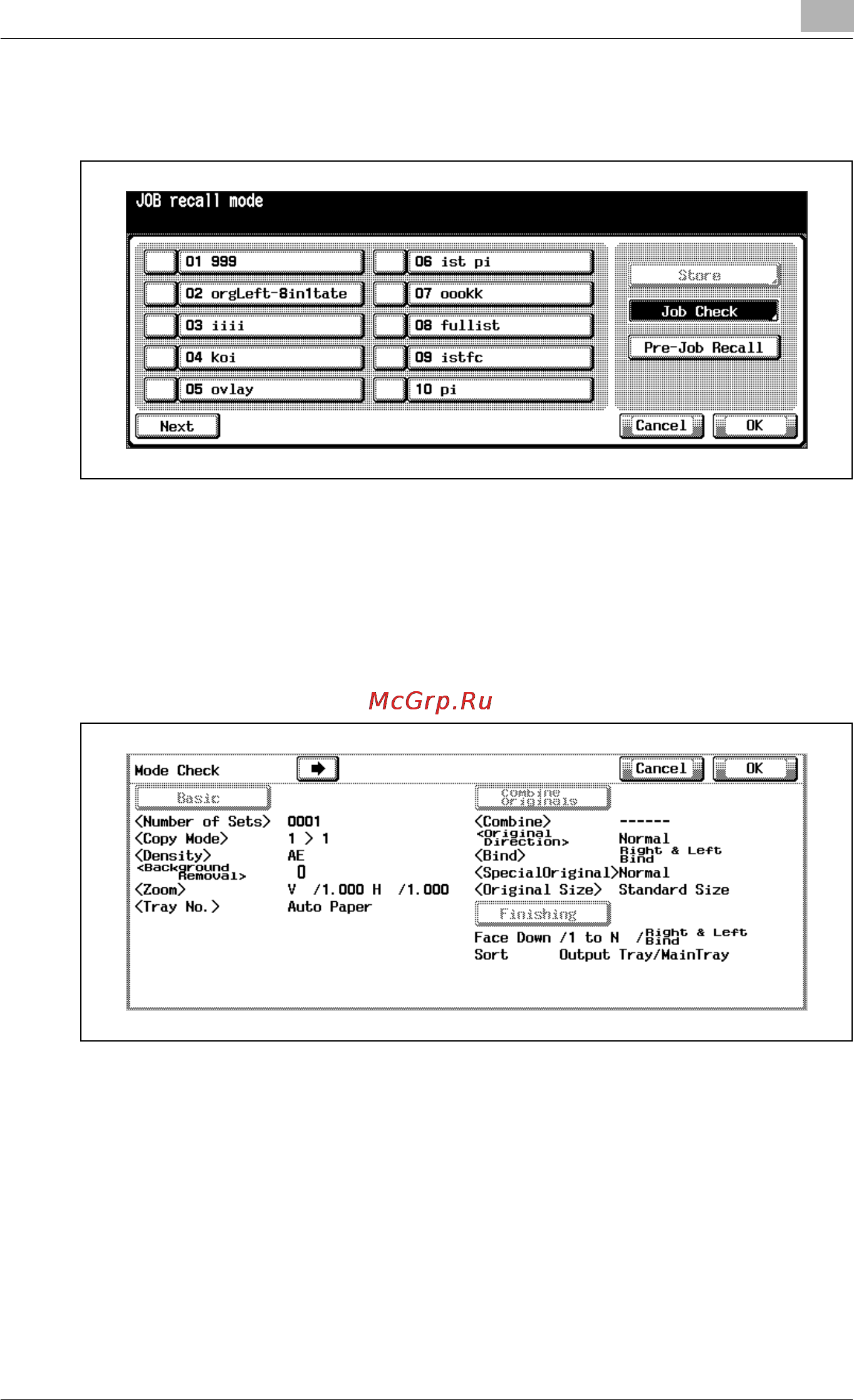

3 Touch [Job Check].

The Check Screen displays to allow you to review the settings.

Do you want to start copying without reviewing the settings?

% Touch [OK] instead of Job Check. Proceed to step 6.

4 Review the job settings.

Do you want to select another job?

% Touch [Cancel].

5 Touch [OK] on the Check Screen.

The settings of the selected job will be recalled on the restored Basic

Screen.

6 Position original(s), then press [Start] to print.
