Advanced Information

bizhub PRO 920 14-19

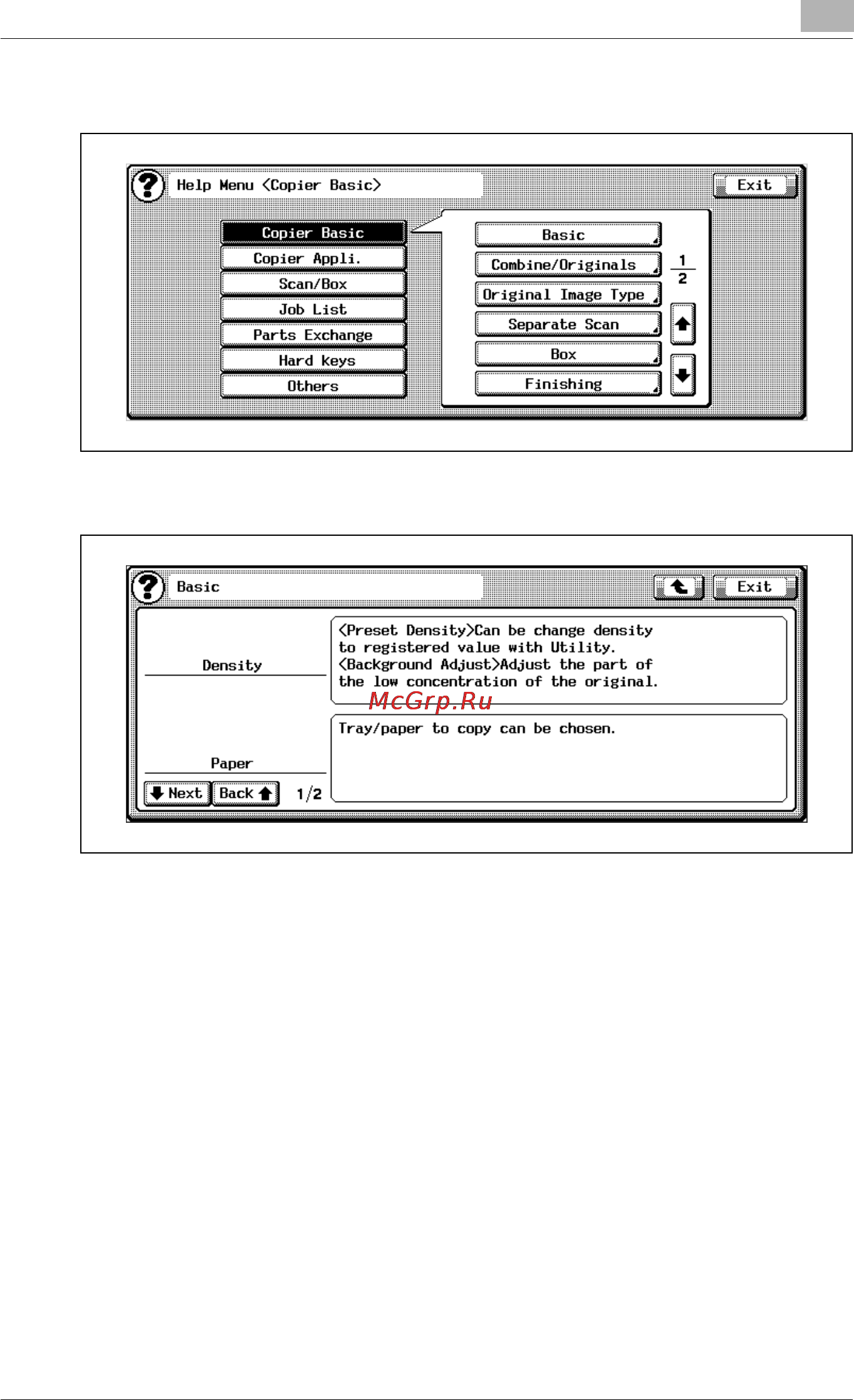

2 Touch the desired menu key to display specific information.

3 Touch upper/lower arrow key to scroll, if provided.

4 Touch [Exit].

The Basic Screen will be restored.
