Advanced Information

bizhub PRO 920 14-23

1 Start the web browser, then enter the IP address of the main body in

the address bar.

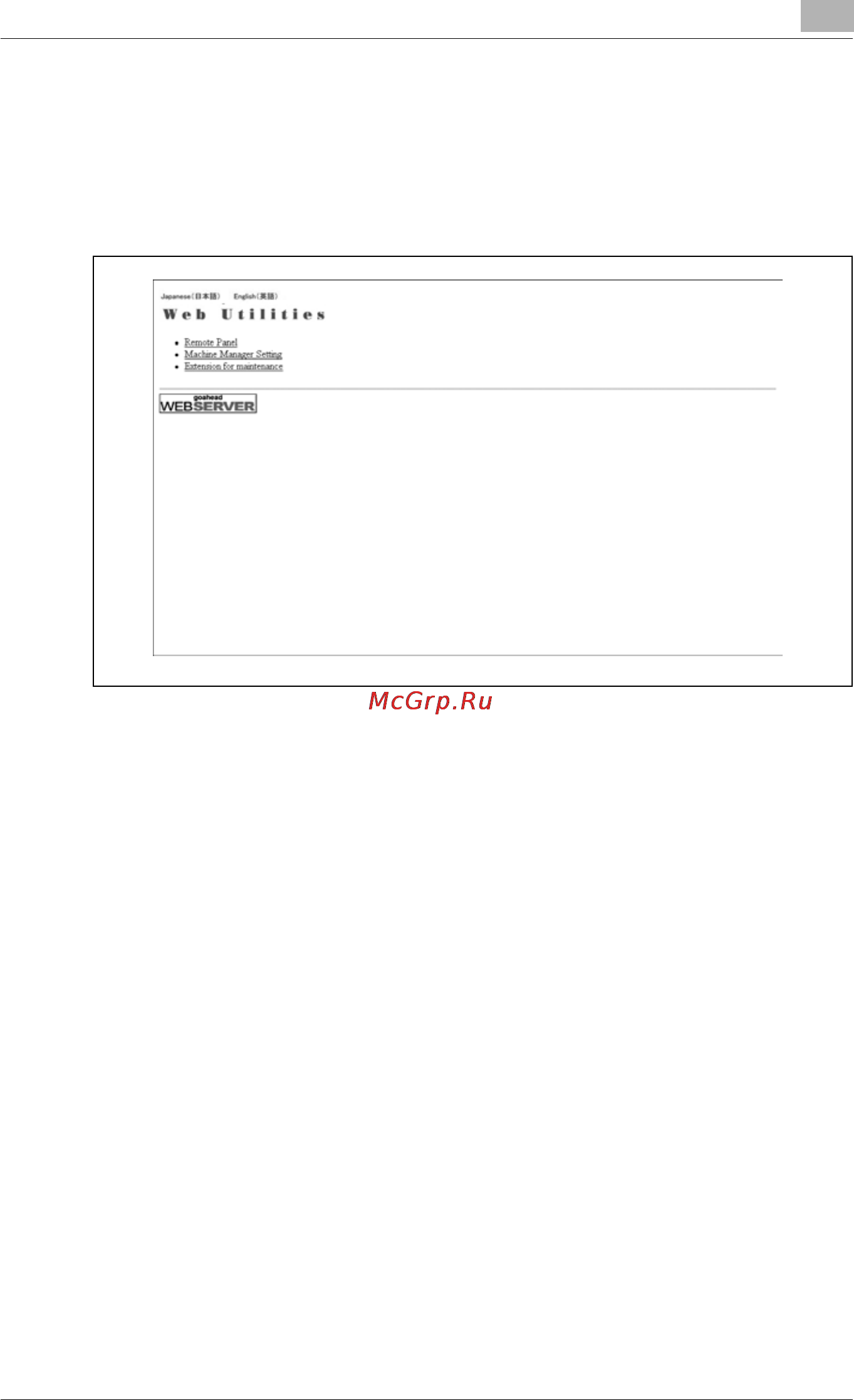

The Web Utilities screen will be displayed.

2 Click [Remote Panel] on the Web Utilities screen.

The browser displays control panel and touch panel screen currently

displayed on the machine.
