Paper Setting

15-18 bizhub PRO 920

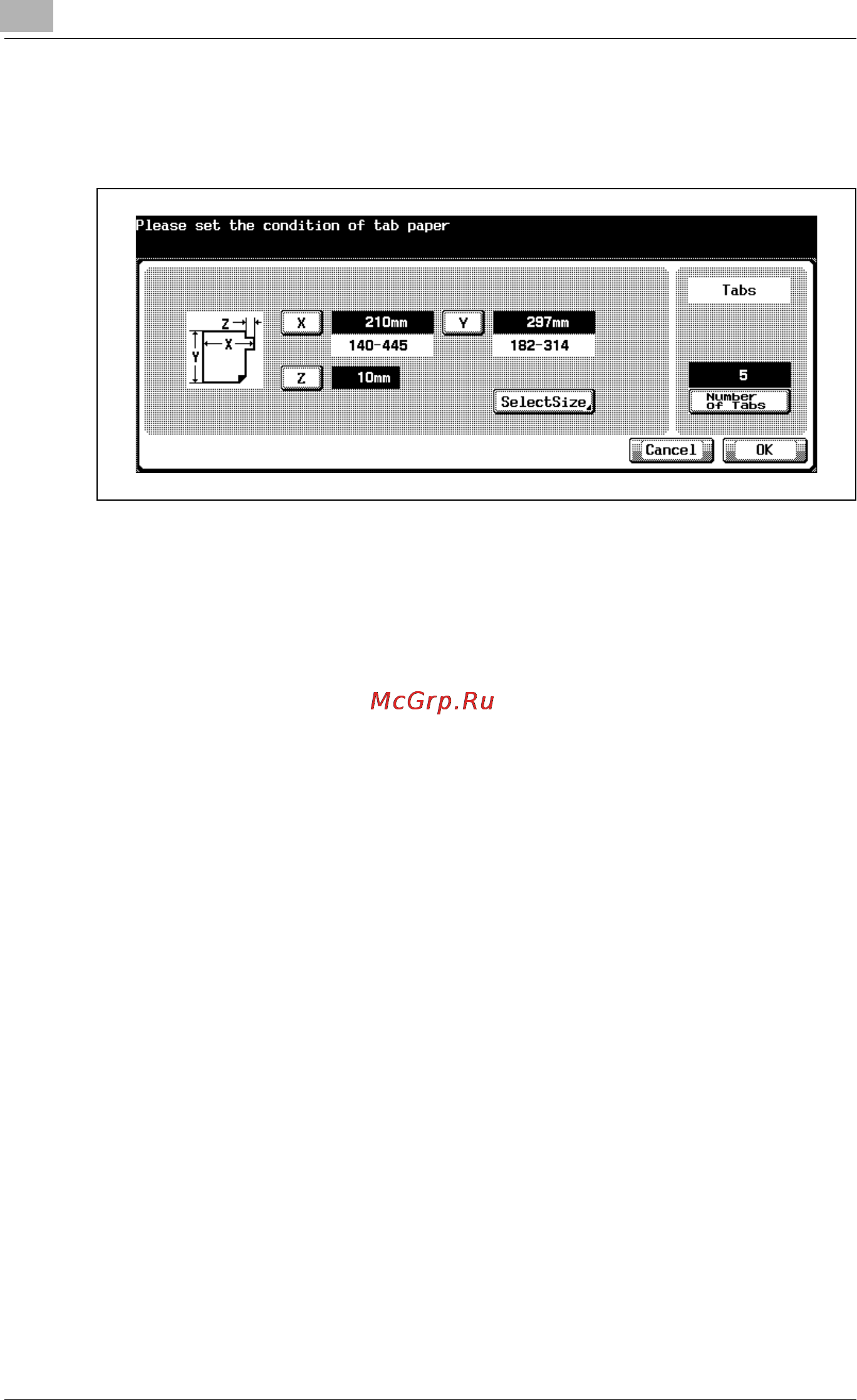

– Touch [Input Size] to set the desired size.

– Touch [X], [Y], or [Z], indicating the vertical, horizontal or index size,

then enter the desired size using the control panel keypad.

– The value to be specified for X and Y will be the minimum size of

140×182mm to the maximum size of 314×445mm. The value to be

specified for Z will be 0 to 99mm.

– Touch [Select Size] to return to the Select Size Screen.

Touch [OK] to complete the setting and return to the Tray Setting

Screen.
