Controller Setting

bizhub PRO 920 16-13

5 Perform the Basic Setting.

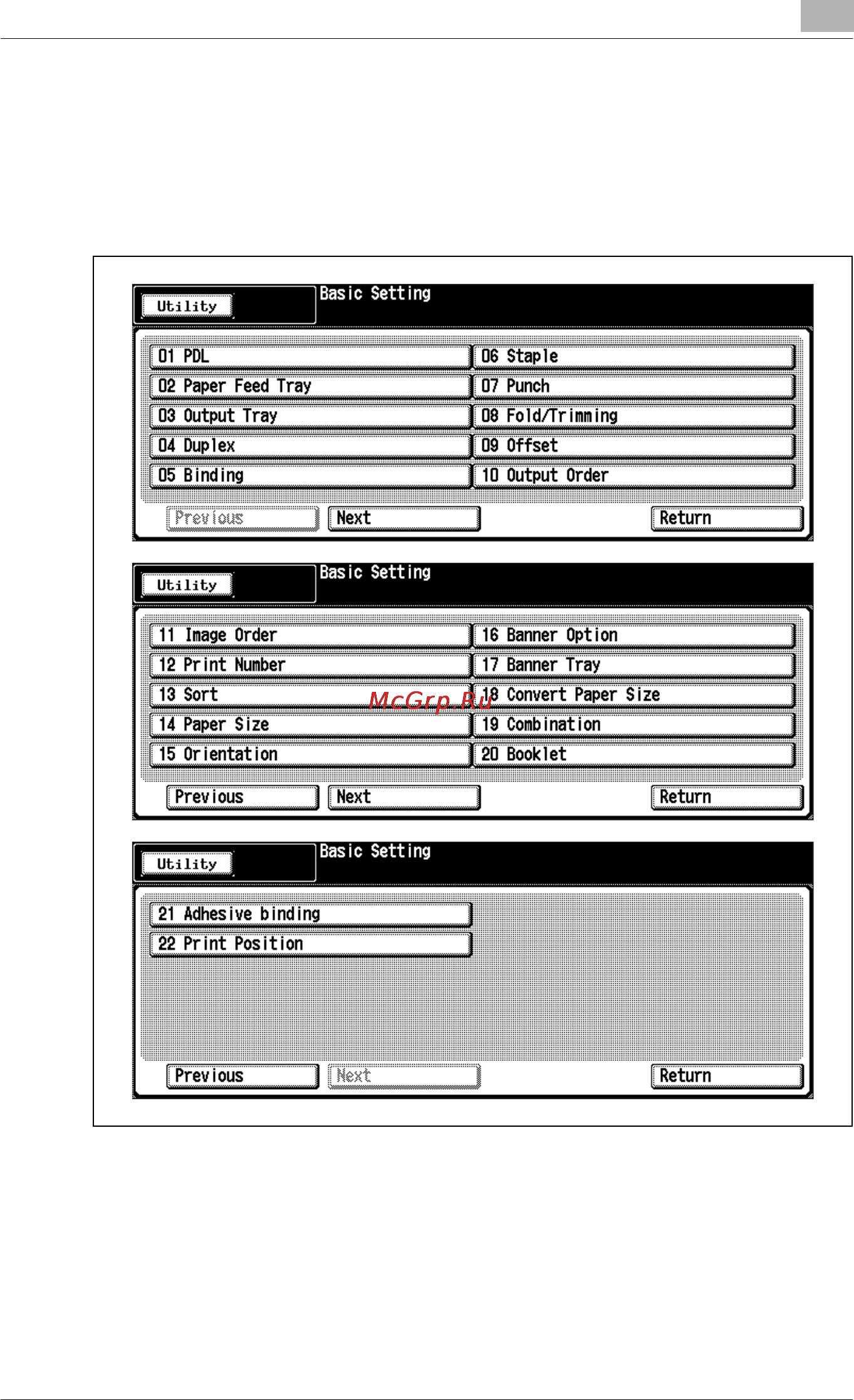

– Touch [01 Basic Setting]. The Basic Setting Screen will be

displayed.

– Make the desired setting. Touch [Next] or [Previous] to scroll to the

desired item.
