Controller Setting

16-16 bizhub PRO 920

7 Perform the PS Setting (option).

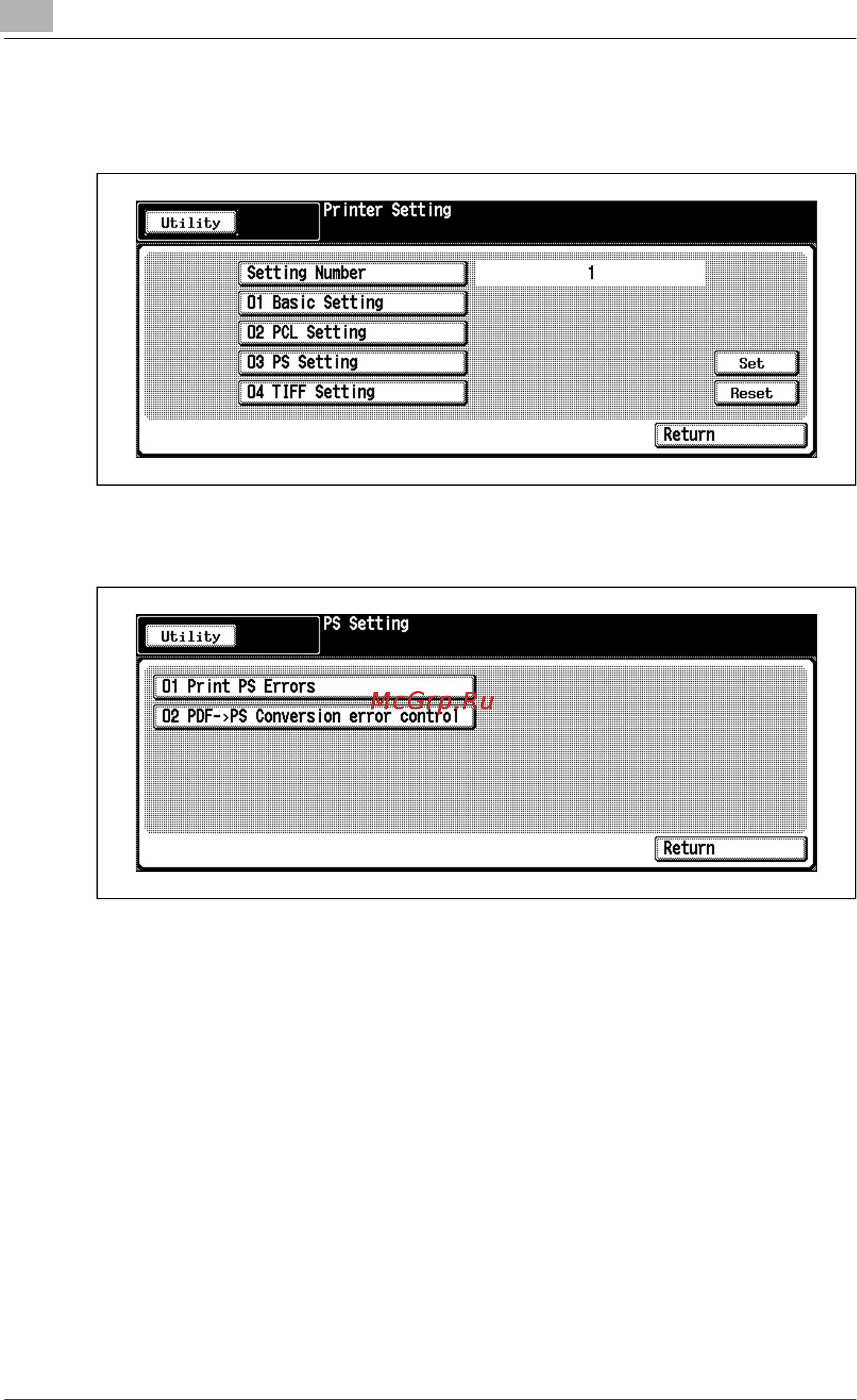

– Touch [03 PS Setting]. The PS Setting Screen will be displayed.

– Make the desired setting.

[01 Print to PS error]: Select [On] to print the error report when an

error occurs while rasterizing PostScreipt data.

[02 PDF -> PS Conversion error control]: Select [On] to stop printing

error pages resulted from the memory overflow.

– Touch [OK] to complete the setting. The PS Setting Screen will be

restored.

– Touch [Return] to complete the setting and restore the Printer

Setting Screen.
