Utility <User Setting>

bizhub PRO 920 17-23

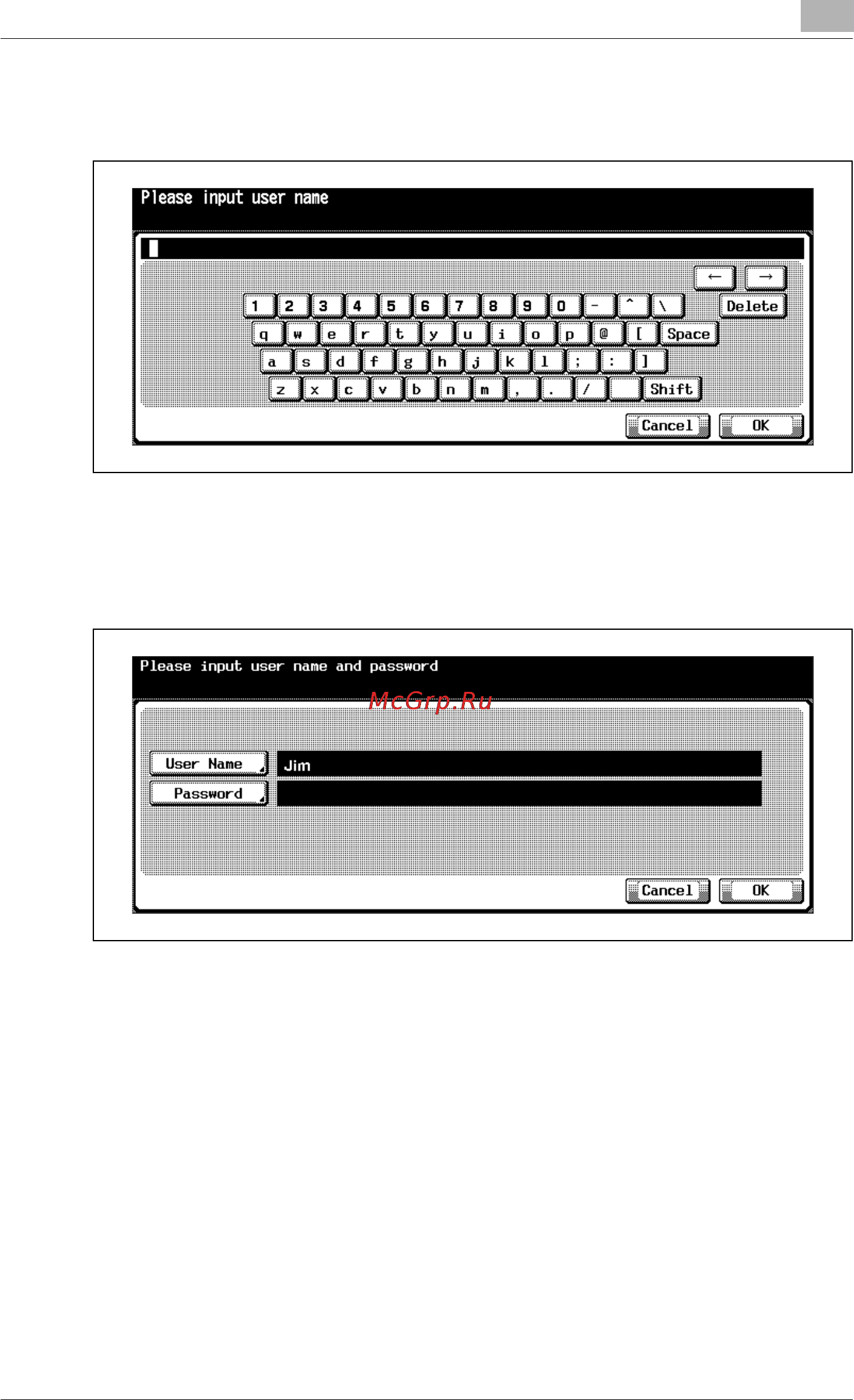

– Enter the user name, then touch [OK] to return to the User

Authentication Screen.

The entered name will be displayed on the screen.

5 Enter the current password.

– Touch [Password] to display the Input User Password Screen.
