Utility <User Setting>

17-62 bizhub PRO 920

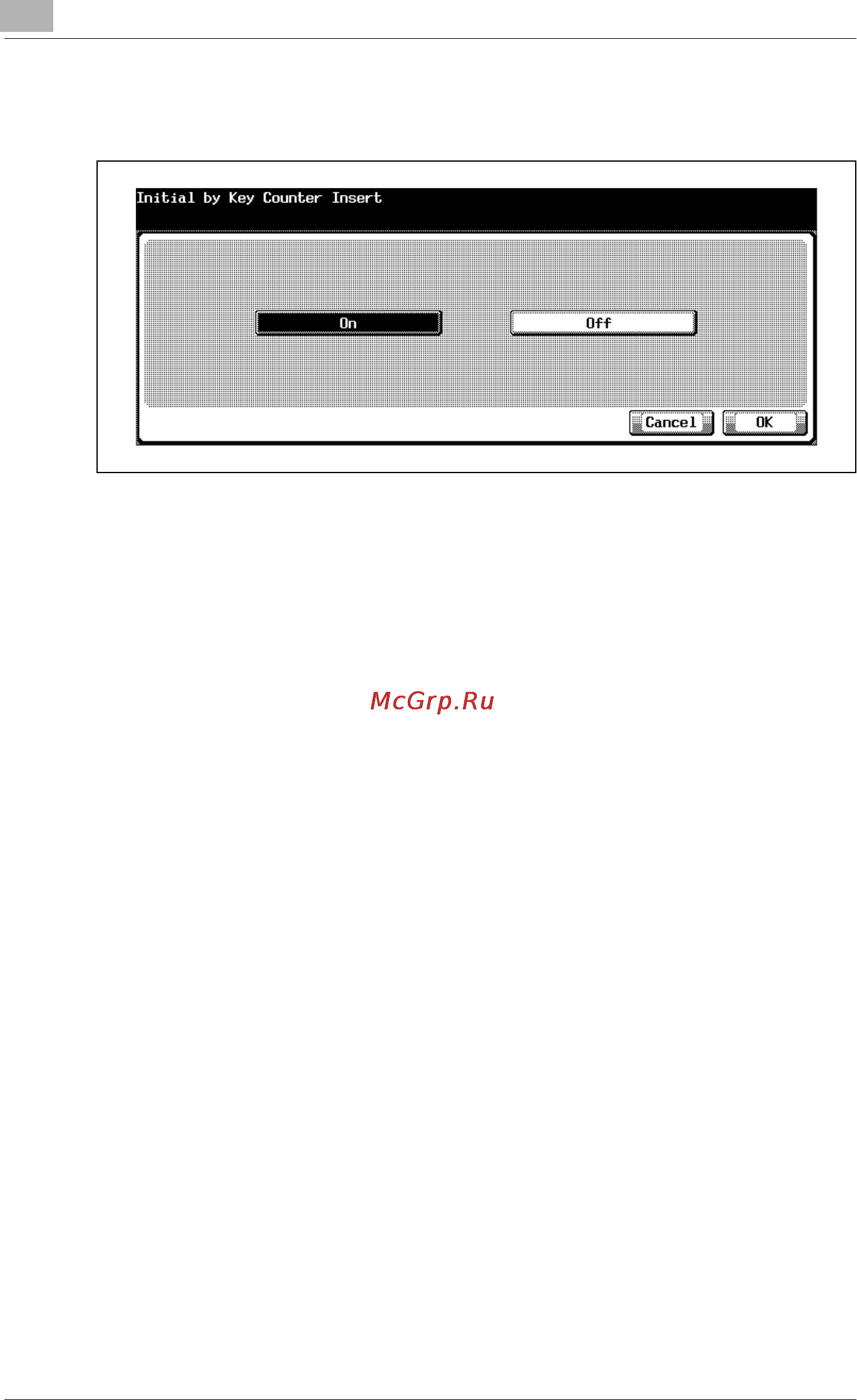

5 Touch [On] to reset and [Off] not to reset, when inserting the key

counter or the copy card.

6 Touch [OK] to complete the setting and return to the Reset Setting

Screen.

7 If further changes are required, touch the desired key.

Touch [Utility] to restore the Utility Screen.
