Utility <Administrator Setting>

18-20 bizhub PRO 920

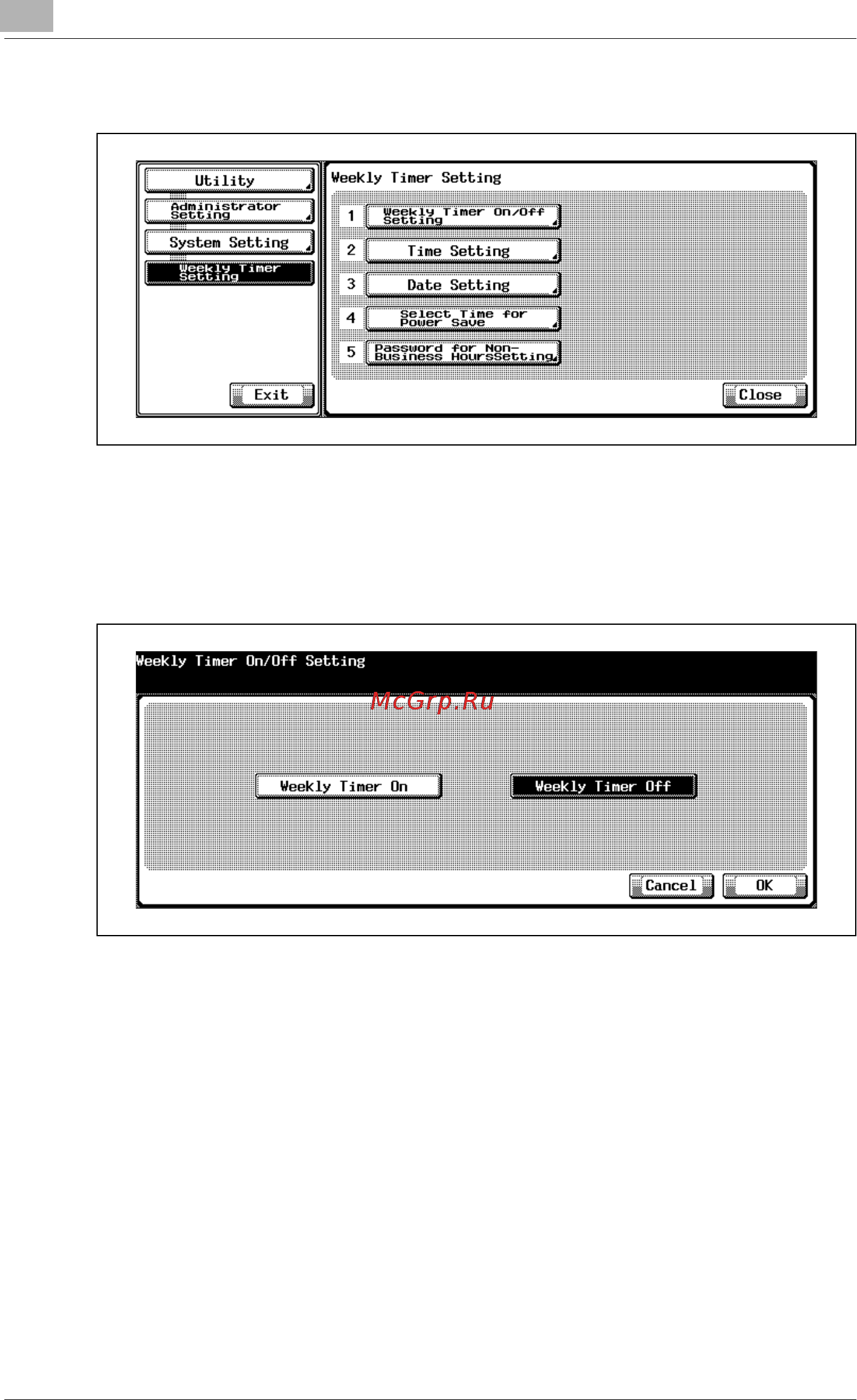

5 Touch [1 Weekly Timer On/Off Setting].

The Weekly Timer On/Off Setting Screen will be displayed.

6 Touch [Weekly Timer On] to activate Weekly Timer, or touch [Weekly

Timer Off] to deactivate Weekly Timer. The default setting is Weekly

Timer Off.

The selected key will be highlighted.

7 Touch [OK] to complete the setting and return to the Weekly Timer

Setting Screen.

8 If further changes are required, touch the desired key.

Touch [Utility] to restore the Utility Screen.
