Utility <Administrator Setting>

18-28 bizhub PRO 920

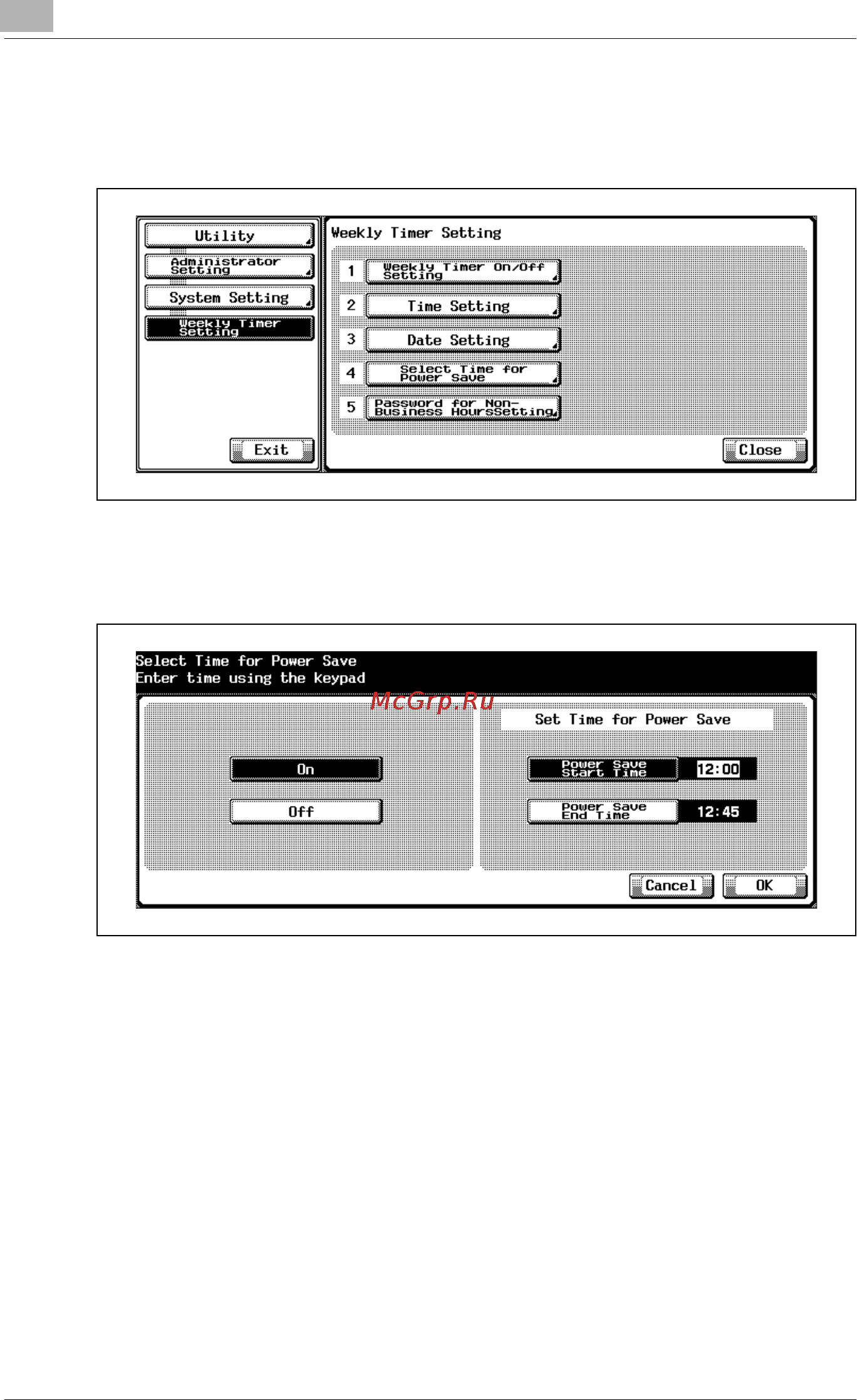

The Weekly Timer Setting Screen will be displayed.

5 Touch [4 Select Time for Power Save].

The Select Time for Power Save Screen will be displayed.

6 Touch [On].

The Power Save Start Time is highlighted. Set the start time by using

the control panel keypad.

Touch [Power Save End Time], and set the end time using the control

panel keypad.
