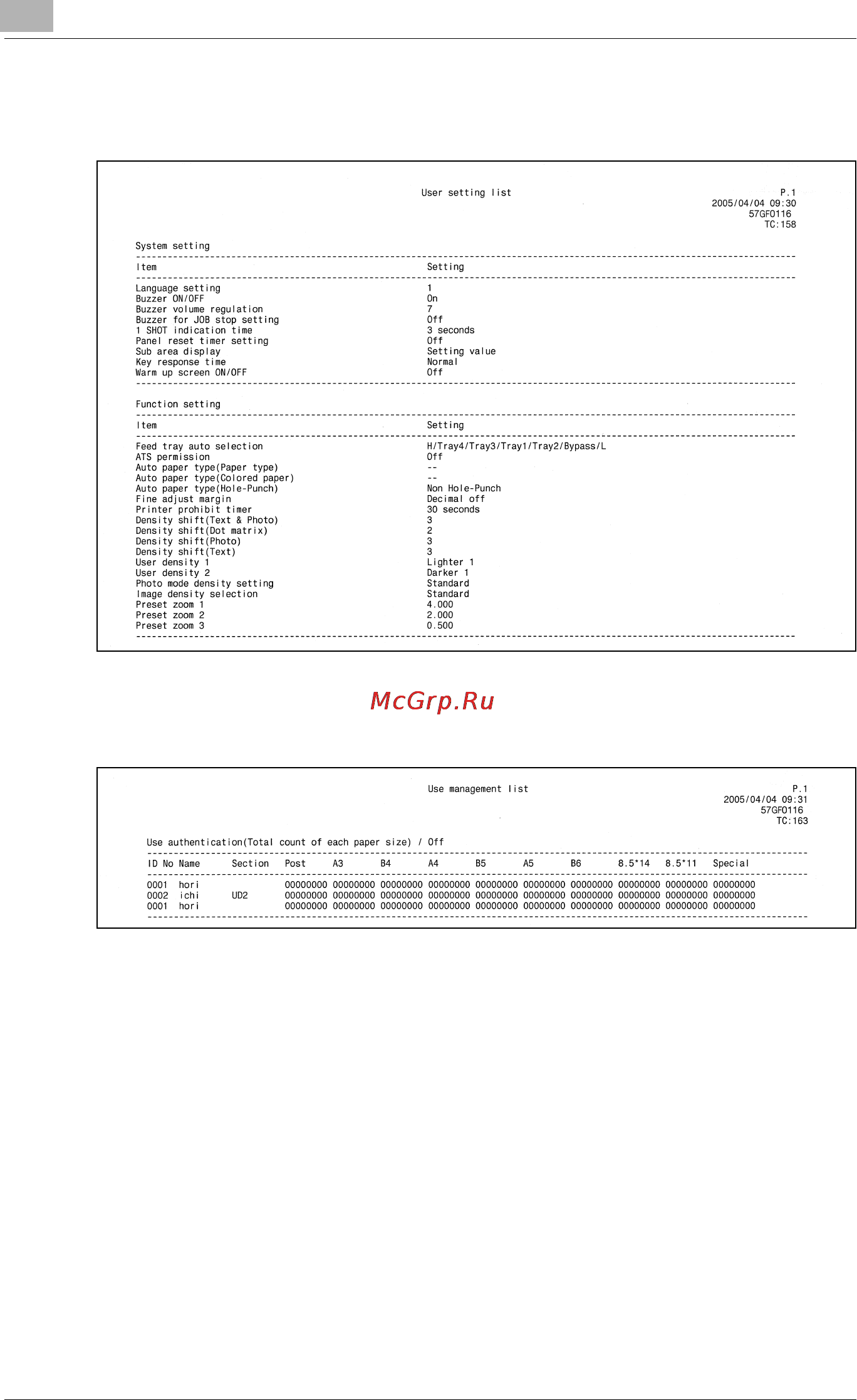

Utility <Administrator Setting>

18-34 bizhub PRO 920

- User management list:

Home position settings selected by user

- Use management list:

Information controlled by user authentication or division authentication

- Font pattern list:

Font patterns used in the machine
