Utility <Administrator Setting>

18-48 bizhub PRO 920

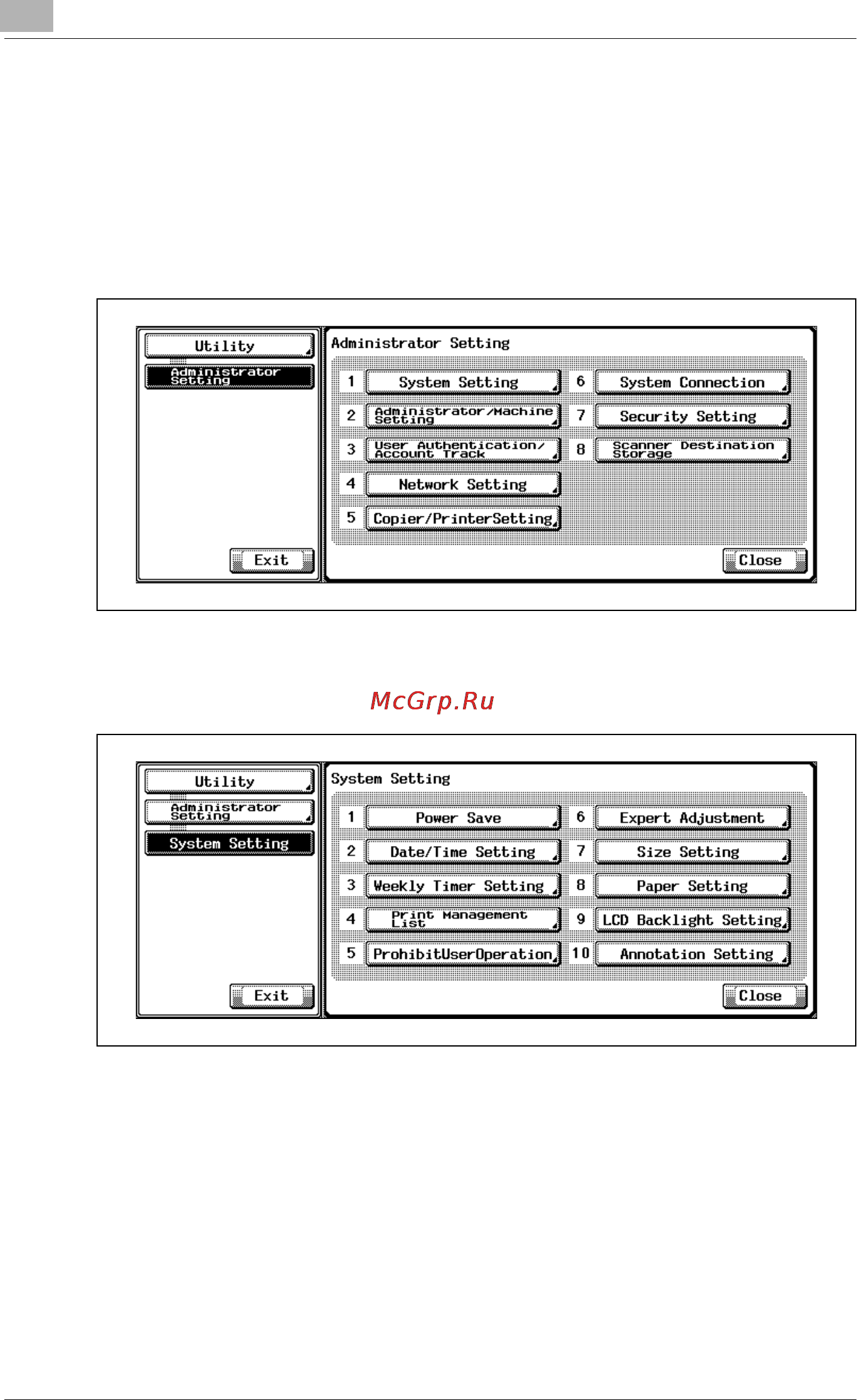

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [6 Administrator Setting], enter the administrator password, and

then touch [OK].

The Administrator Setting Screen will be displayed.

3 Touch [1 System Setting].

The System Setting Screen will be displayed.

4 Touch [6 Expert Adjustment].

The Expert Adjustment Screen will be displayed.
