Utility <Administrator Setting>

18-50 bizhub PRO 920

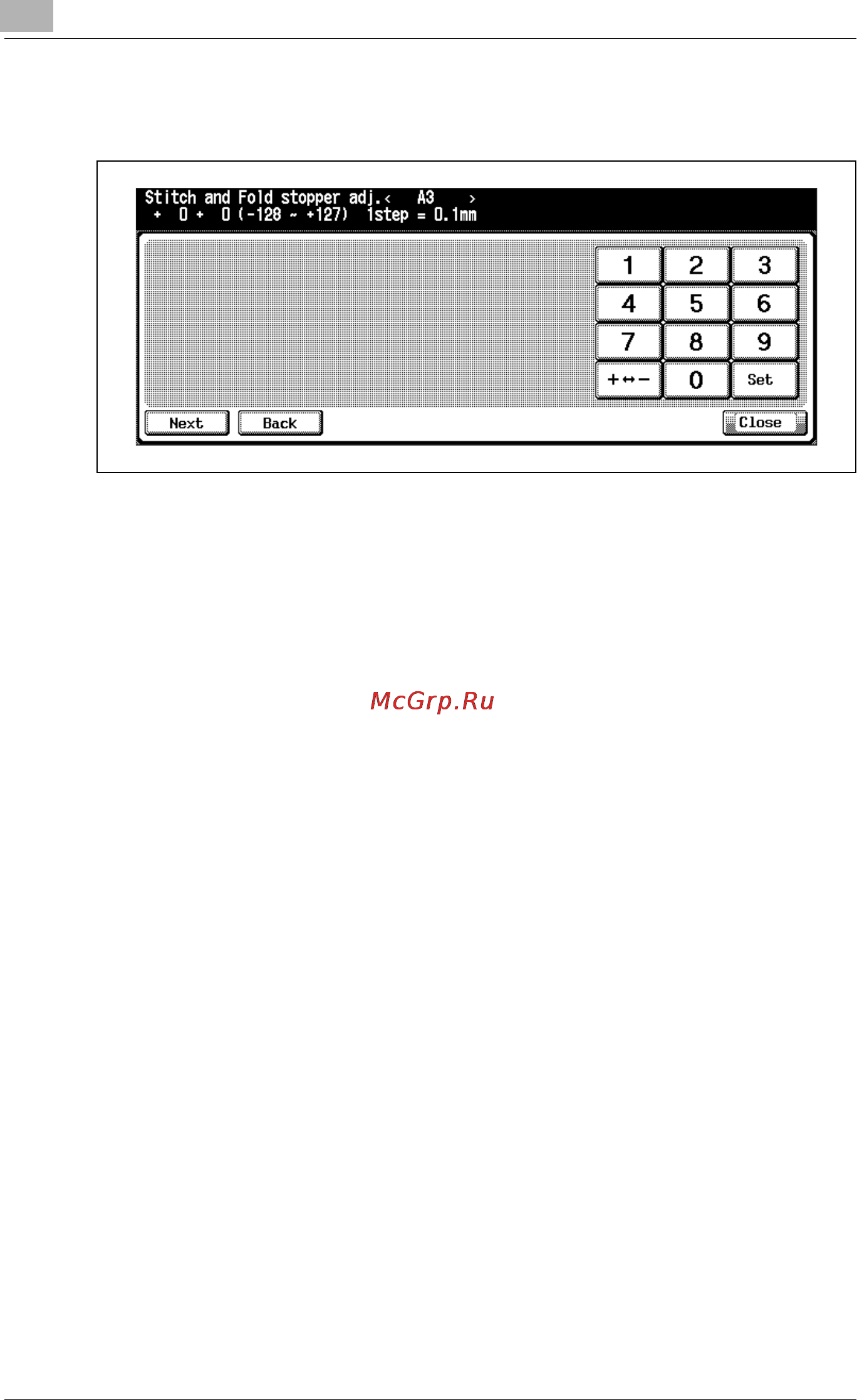

7 Touch [Next] or [Back] to select a desired paper size and a paper feed

tray.

8 Select + and – by touching the [+--] key on the touch screen keypad,

and touch [Set].

9 Touch [Close] to return to the Finisher Adjust Screen.

10 Touch [Close] to return to the Expert Adjustment Screen.

11 If further changes are required, touch the desired key.

Touch [Utility] to restore the Utility Screen.
