Utility <Administrator Setting>

bizhub PRO 920 18-89

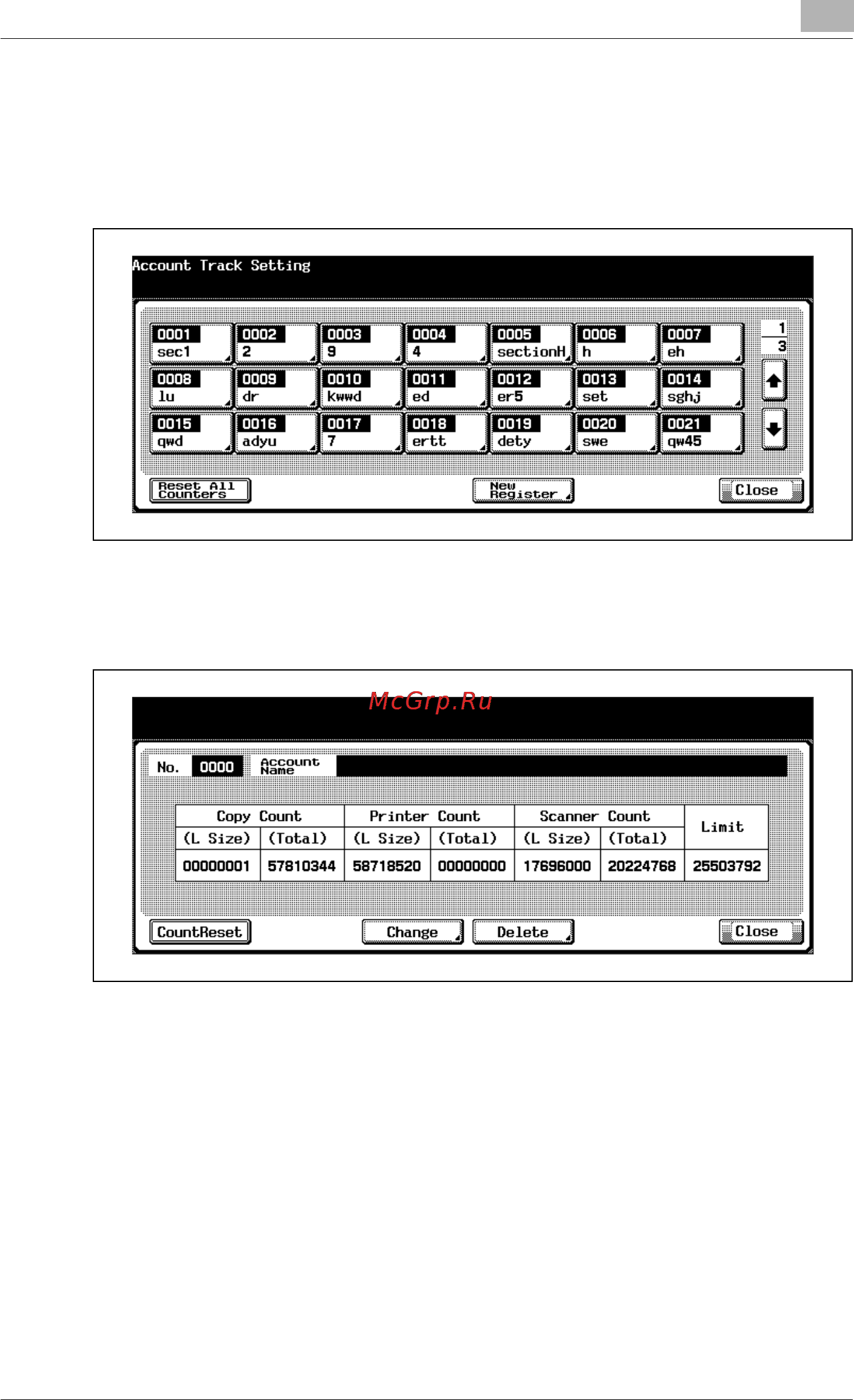

8 Follow the instructions below for resetting the copy count.

– Touch the up or down arrow key to display the account name to

reset the count and touch it to display the Individual Account

Counter Screen.

– Touch [Count Reset] to display the Reset Confirmation popup

screen.
