Utility <Administrator Setting>

bizhub PRO 920 18-95

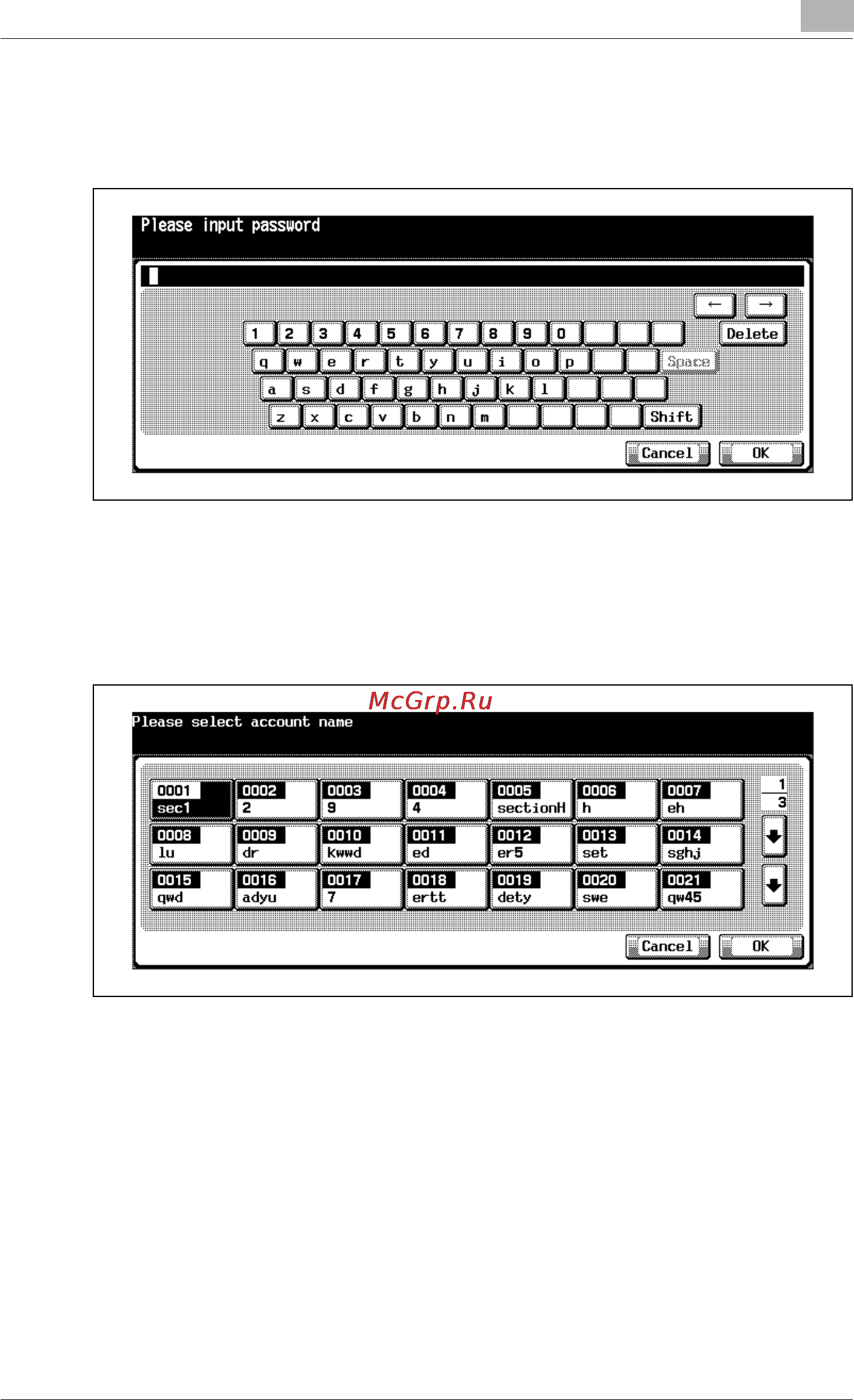

– Touch [Password] to display the input screen. Enter the password

and touch [OK]. You may enter 64 digits for the password. For the

details on entering texts in the input screen, see the appendix.

– Touch [Account Name] to display the screen to select an account

belong to.

Touch the up or down arrow key to display the desired account

name, then touch [OK].

– Touch any key on the right side of [Useable Function] to select the

job necessary to authenticate a newly registered user.
