Utility <Administrator Setting>

18-102 bizhub PRO 920

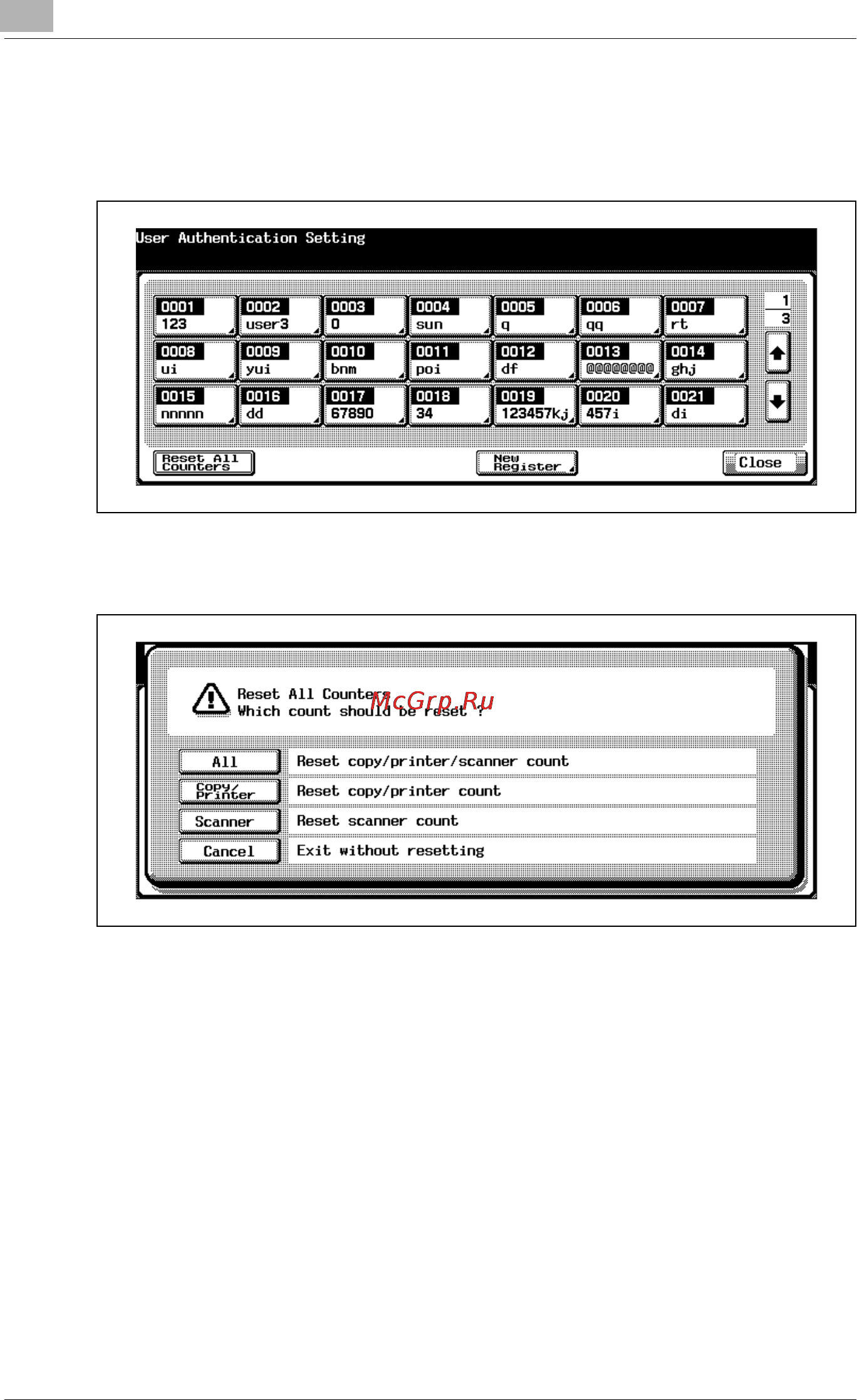

9 Follow the instructions below for resetting all counters.

– Touch [Reset All Counters] to display the All Count Reset

Confirmation popup screen.

– Touch any key to reset. Touch [Cancel] when not resetting.

10 Touch [Close] to complete the setting and return to the User

Authentication/Account Track Screen.

11 Touch [Close] to return to the Administrator Setting Screen.

If further changes are required, touch the desired key.

Touch [Utility] to restore the Utility Screen.
