Utility <Administrator Setting>

bizhub PRO 920 18-123

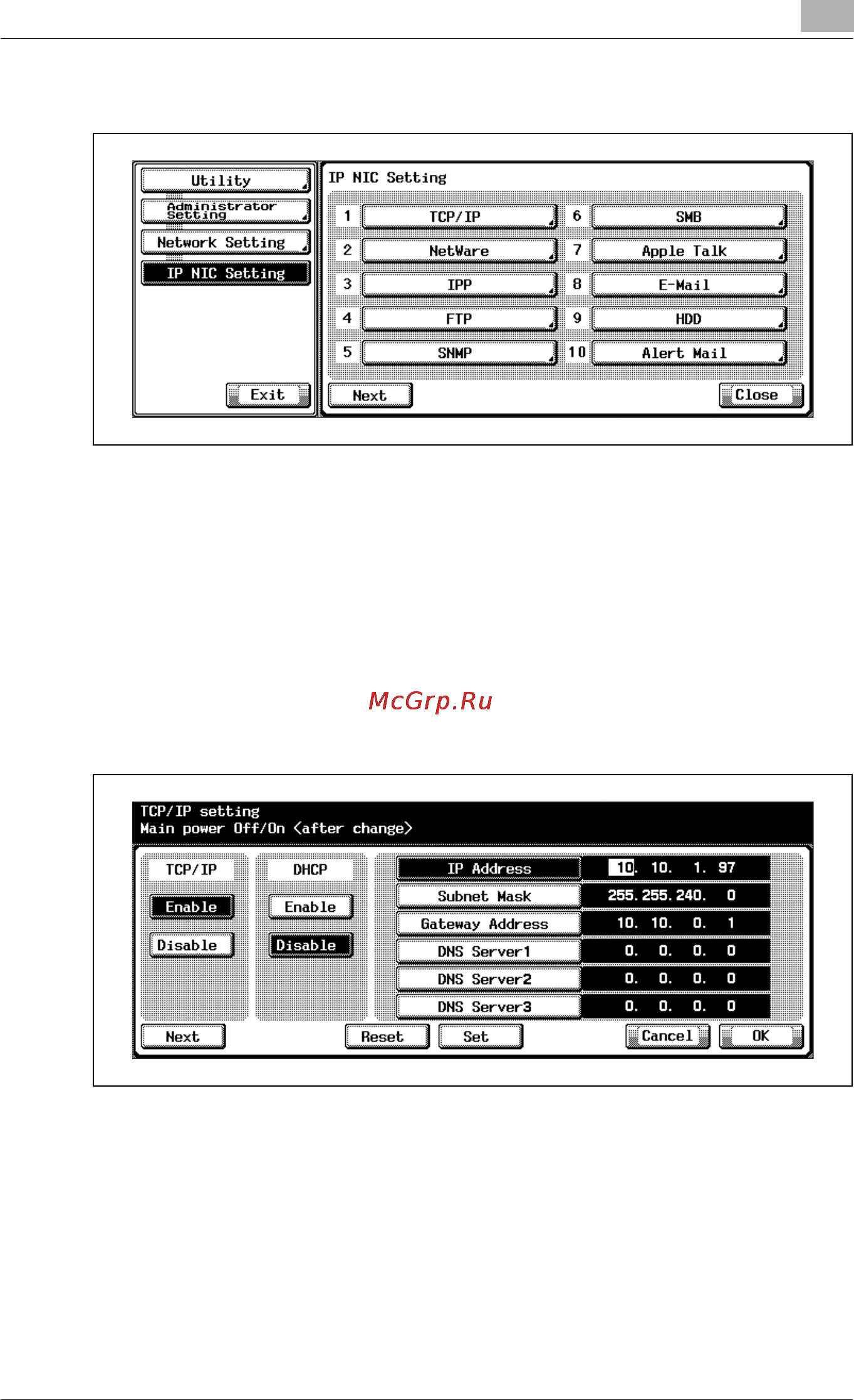

5 Touch [1 TCP/IP].

The TCP/IP Setting Screen will be displayed.

6 For each item, select or enter a required value. Use [Next] or [Back] as

required.

–TCP/IP

–DHCP

– IP Address

– Subnet Mask

– Gateway Address

– DNS server 1-3
