Utility <Administrator Setting>

bizhub PRO 920 18-139

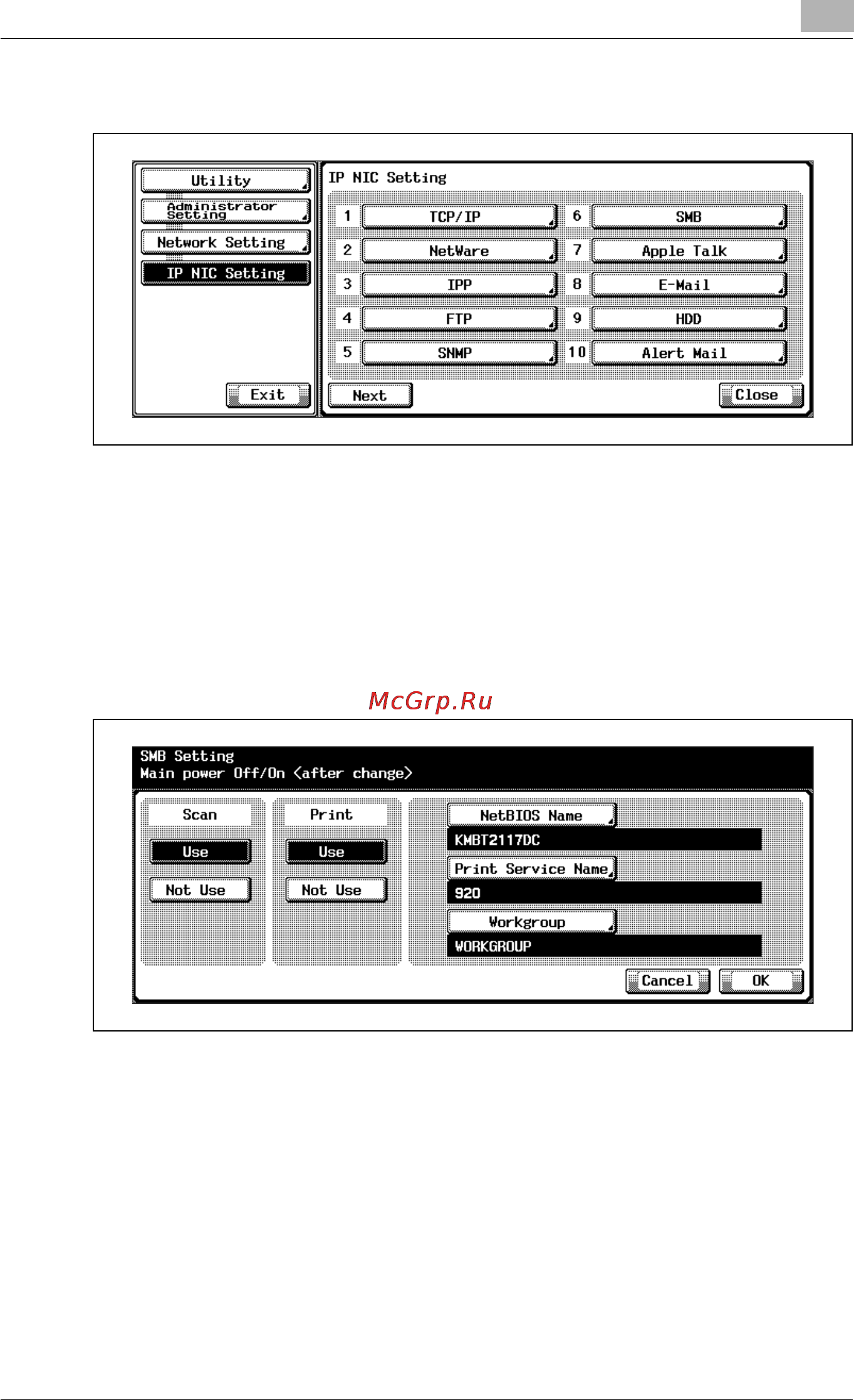

5 Touch [6 SMB].

The SMB Setting Screen will be displayed.

6 For each item, select or enter a required value.

–Scan

–Print

–Net BIOS Name

– Print Service Name

–Workgroup
