Web Utilities Setting

bizhub PRO 920 19-21

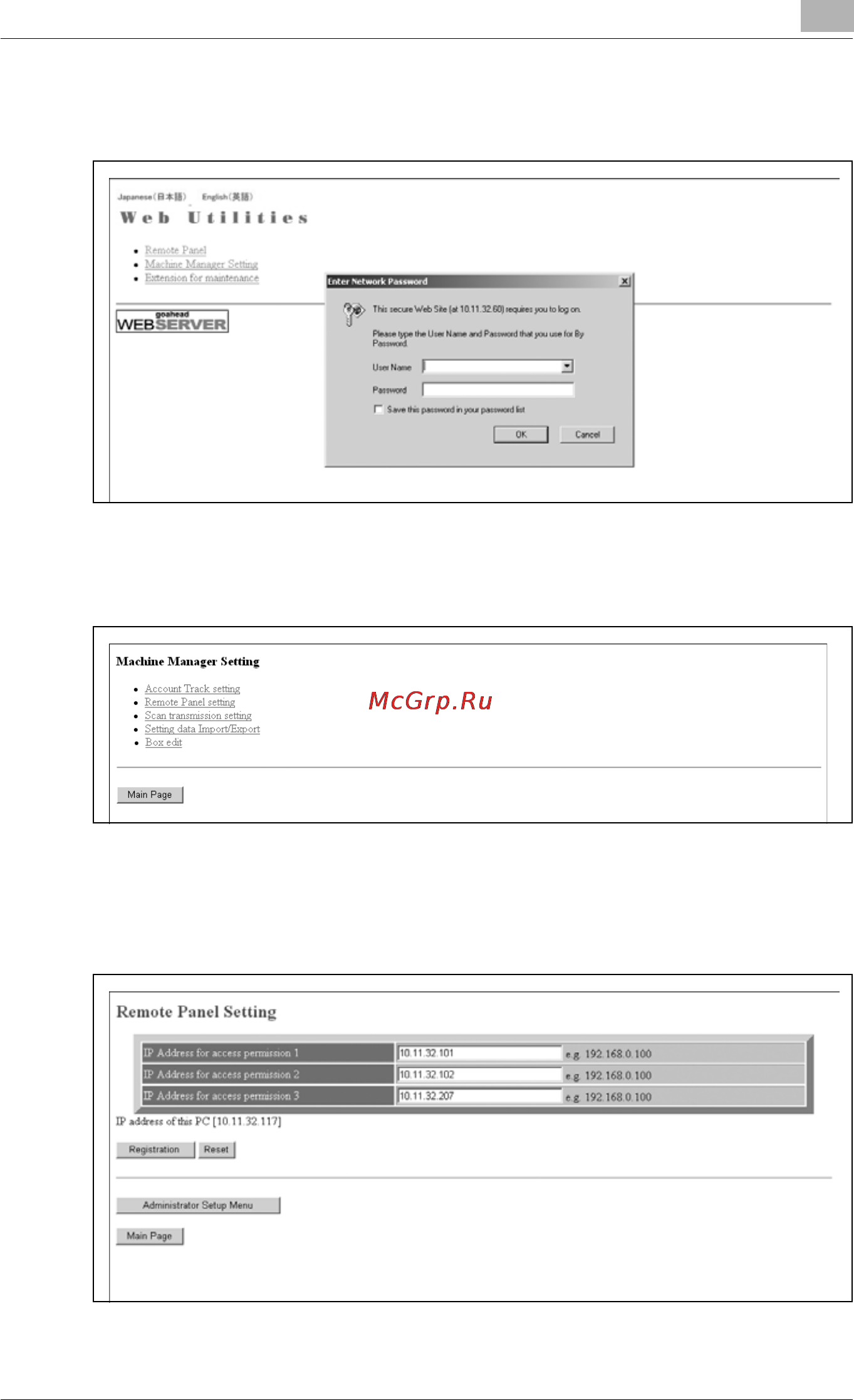

3 Enter "admin" in the User Name text box, and an 8-digit administrator

password in the password text box, then click on [OK].

The Administrator Setting menu will be displayed.

4 Click on [Remote Panel setting].

The Remote Panel Setting menu will be displayed.

5 Specify the IP address of the PC to be used for Remote Panel function.

Max. 3 IP addresses can be specified.
