Paper and Original Information
3
bizhub PRO 920 3-13
Mixed Original mode:
Use Mixed Original mode to copy mixed size originals.
- Original size: Three types of size combination are determined by the ADF
guide width.
– A3, B4, A4, A4R, B5 and A5 mixed
– B4, A4R, B5, B5R, and A5 mixed
– A4R, B5R and A5 mixed
- Original weight: 50 ~ 130 g/m
2
(no special stock)
- Curling tolerance: 10 mm or less
- Max. feeder capacity: 100 sheets (80 g/m
2
)
- Feeding tolerance: 5 times or less (single-sided) / 3 times or less (double-
sided)
See below for the guide width of each combination.
!
Detail
Detectable paper size can be changed from Metric to Inch, Metric A Size
Paper, or Full Size by the administrator. For details, refer to "7 Size
Setting" on page 18-57.
When loading 8.5"×11"R in the Multi-sheet bypass tray and specifying
the size in Bypass tray setting, the machine will detect A4R original as
8.5"×11"R. For details of Bypass tray setting, see "Copying Using
Special Paper (Bypass Tray Setting)" on page 9-16.

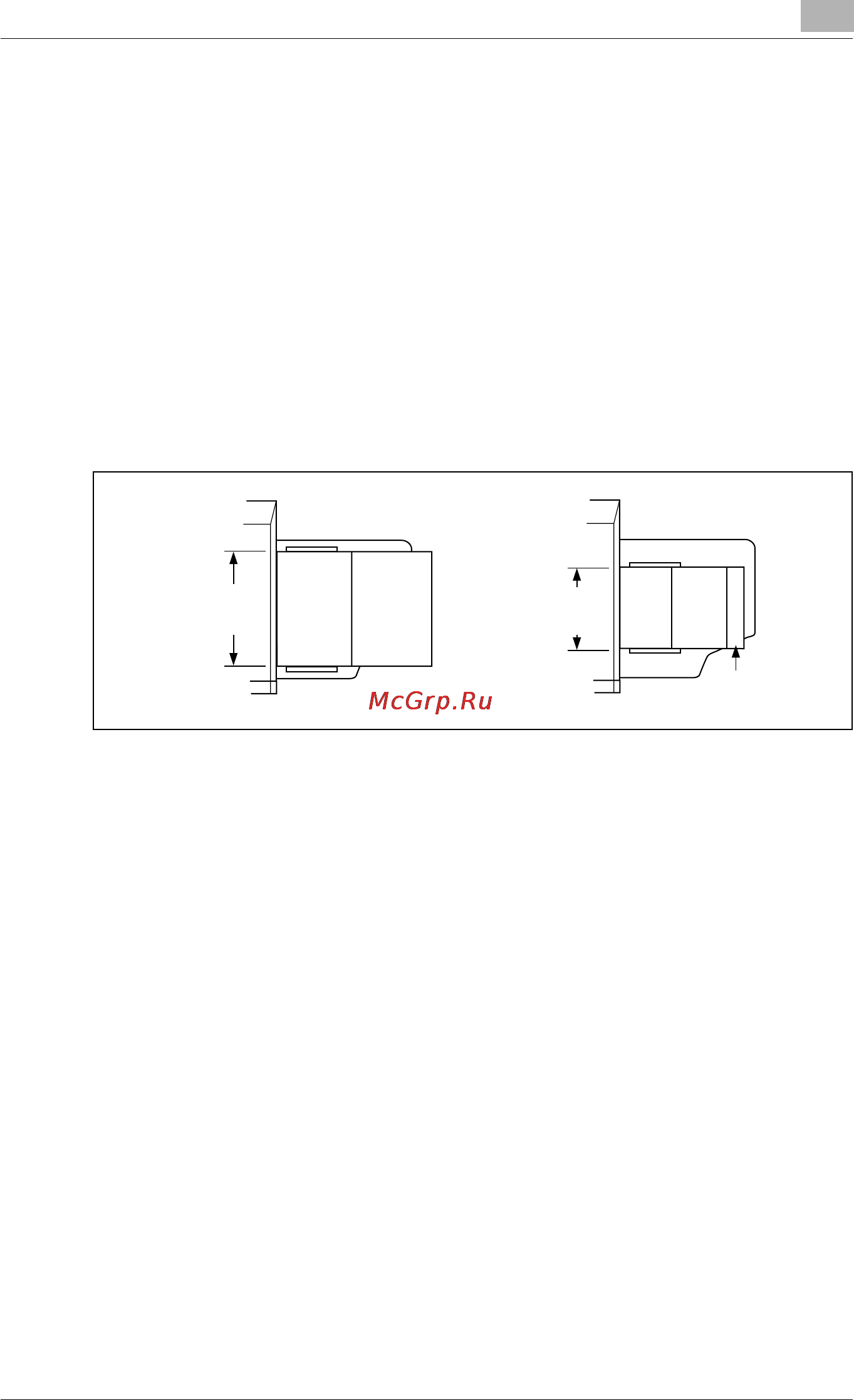

Guide width
Guide width
A4 A3
A4R
B5
B4
