PageScope Web Connection Setting

20-32 bizhub PRO 920

FTP

FTP Client

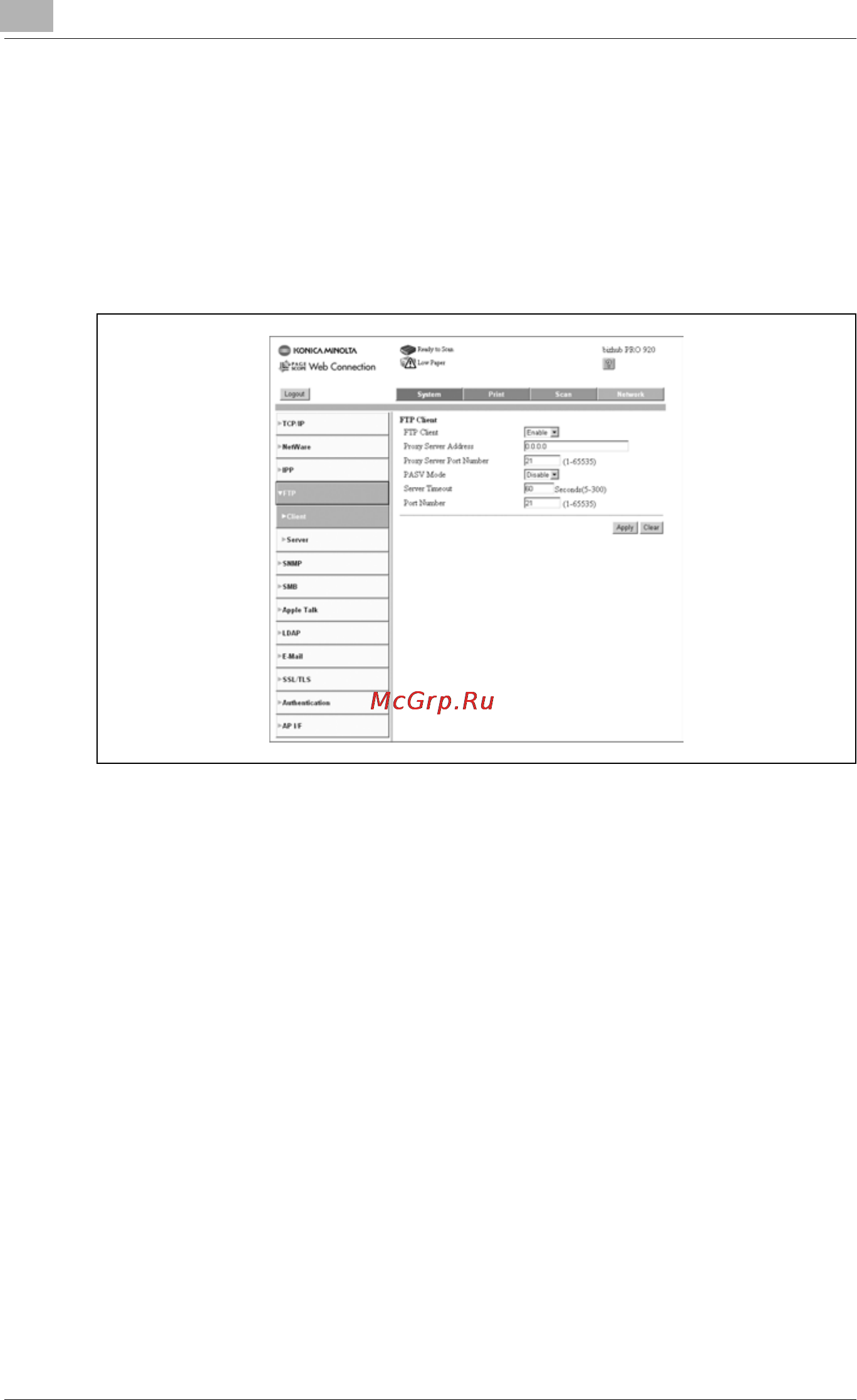

This screen appears when you click [FTP] on the [Network] tab, then click

[Client] under the [FTP] menu. The screen is used to enter and confirm

various settings concerning the FTP client.

When FTP Client is set to disable, you still need to set parameters. Make sure

to enter parameters correctly.

Description

- Enter for individual items.

FTP Client, Proxy Server Address, Proxy Server Port Number, PASV

Mode, Server Timeout, Port Number.

- [Apply] button:

Click the button to apply the new settings.

- [Clear] button:

Click the button to clear the settings that were entered.
