PageScope Web Connection Setting

bizhub PRO 920 20-43

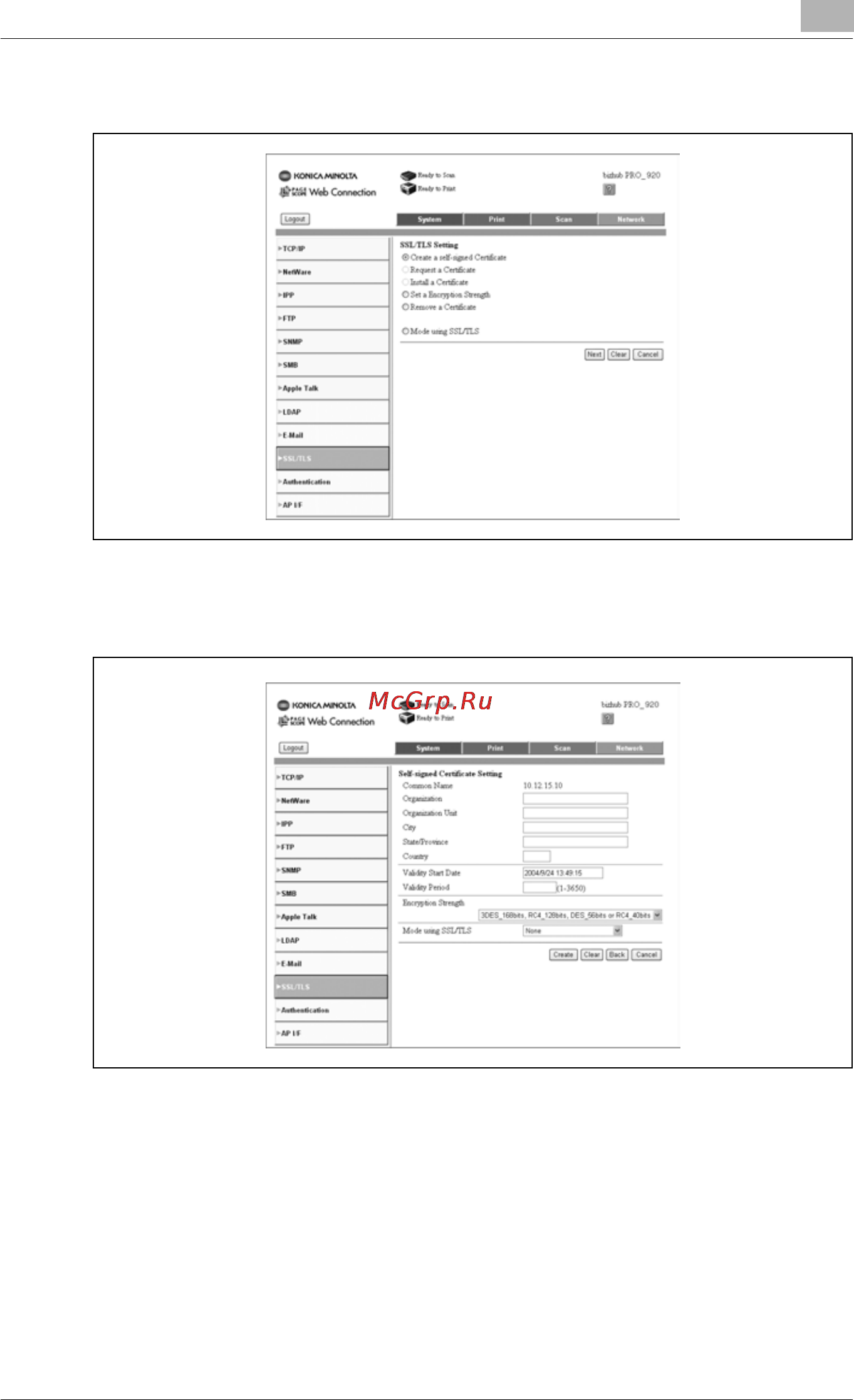

2 Check [Create a Self-Signed Certificate] and click [Next].

The Self-Signed Certificate Setting screen appears.

3 Enter settings, and click [Create].

Following the screen indicating that the certificate is being created,

another screen appears, saying, "The certificate has been created.

SSL/TLS can now be used."

4 Click [OK].

It will take you back to the SSL/TLS Information screen of the self-

signed certificate
