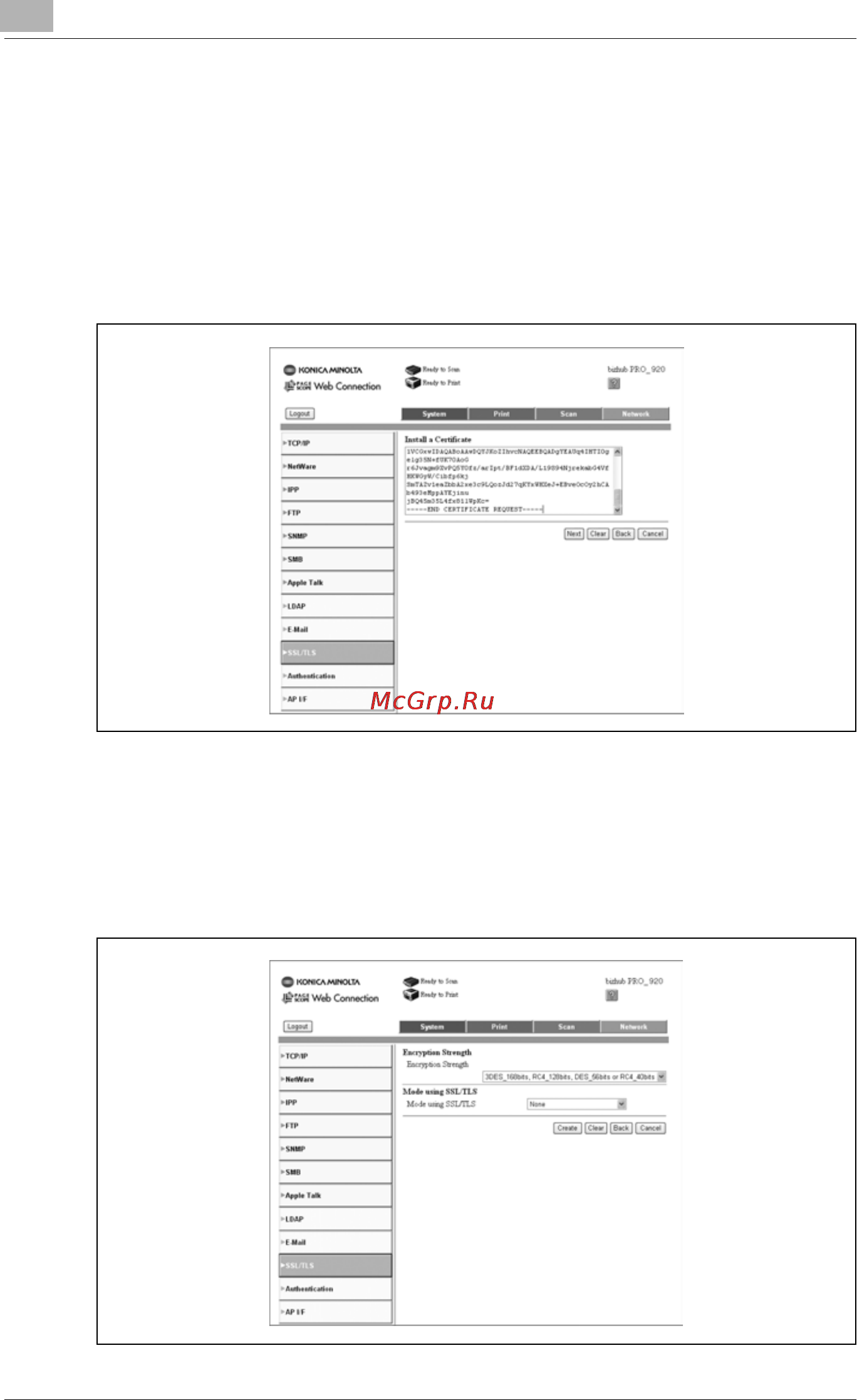

PageScope Web Connection Setting

20-46 bizhub PRO 920

7 Click [Setting].

The SSL/TLS Setting screen appears.

8 Check [Install a Certificate], and click [Next].

The certificate installation screen appears.

9 Enter the data of the certificate that you requested.

10 Click [Next].

The Encryption Strength Setting and the Mode using SSL/TLS screen

appears.

11 Enter discretionary settings, and click [Create].
