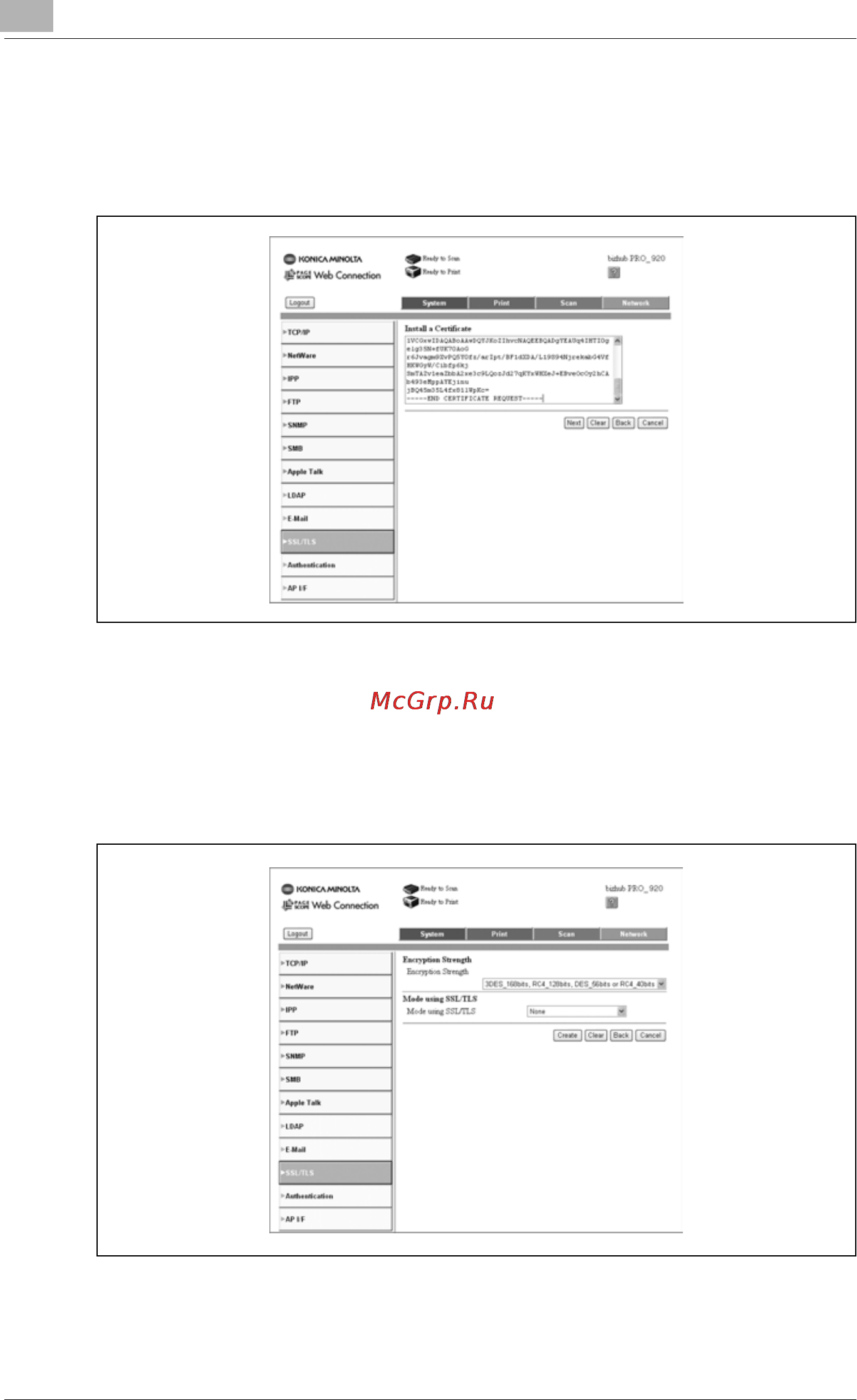

PageScope Web Connection Setting

20-50 bizhub PRO 920

7 Check [Install a Certificate], and click [Next].

The certificate installation screen appears.

8 Enter the data of the certificate that you requested.

9 Click [Next].

10 The Encryption Strength Setting and the Mode using SSL/TLS screen

appears.

11 Enter discretionary settings, and click [Create].

Creation results appear.

12 Click [OK].

It will take you back to the SSL/TLS Information screen.
