User Authentication in Enhanced Security Mode

24-8 bizhub PRO 920

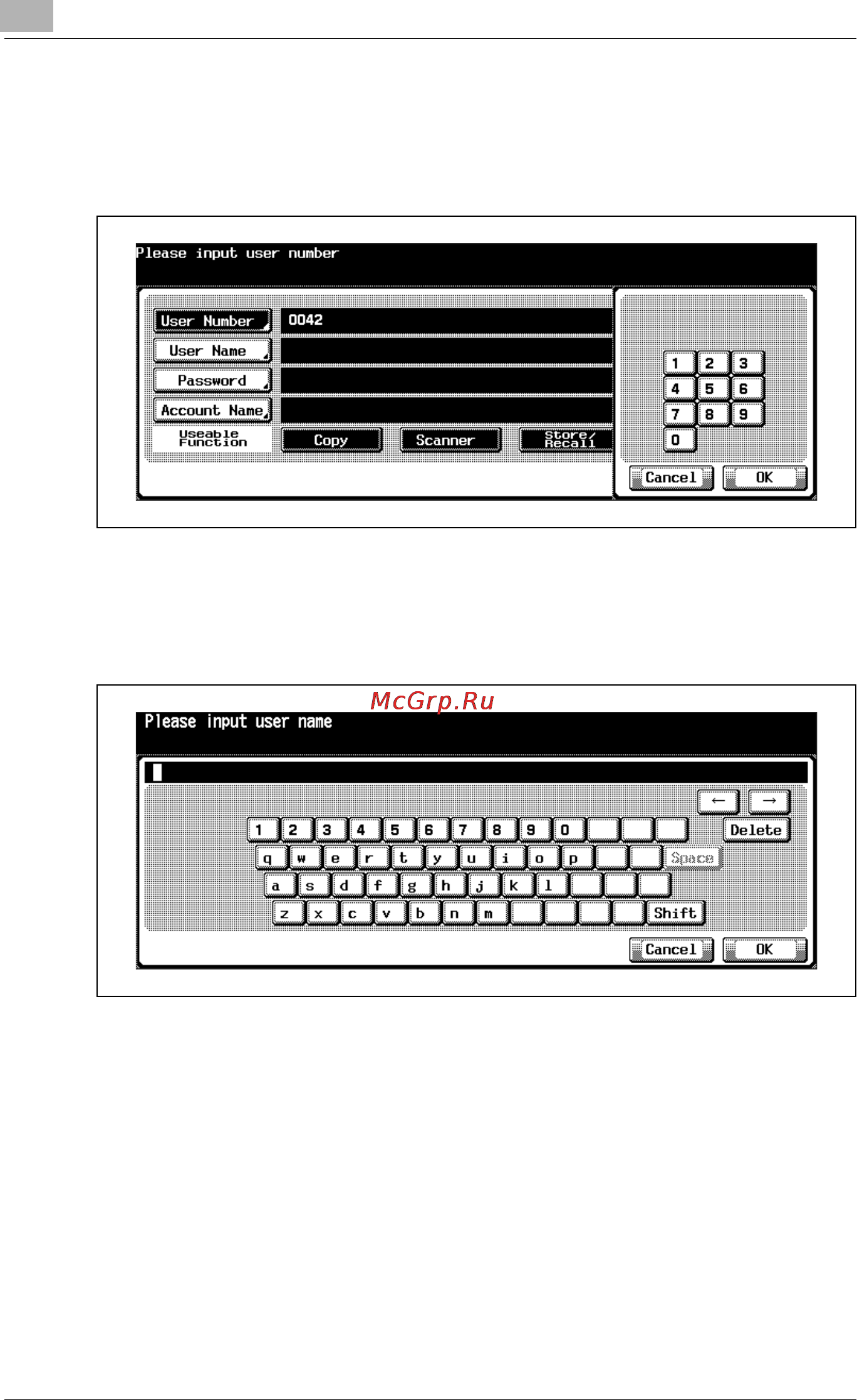

– To enter the User Number, touch [User Number] on the New User

Registration Screen. Use the screen keypad on the popup menu to

enter the desired user number. Touch [OK] to return to the New

User Registration Screen.

– To enter the User Name, touch [User Name] on the New User

Registration Screen. Enter the desired user name from the screen

keypad. Touch [OK] to return to the New User Registration Screen.
