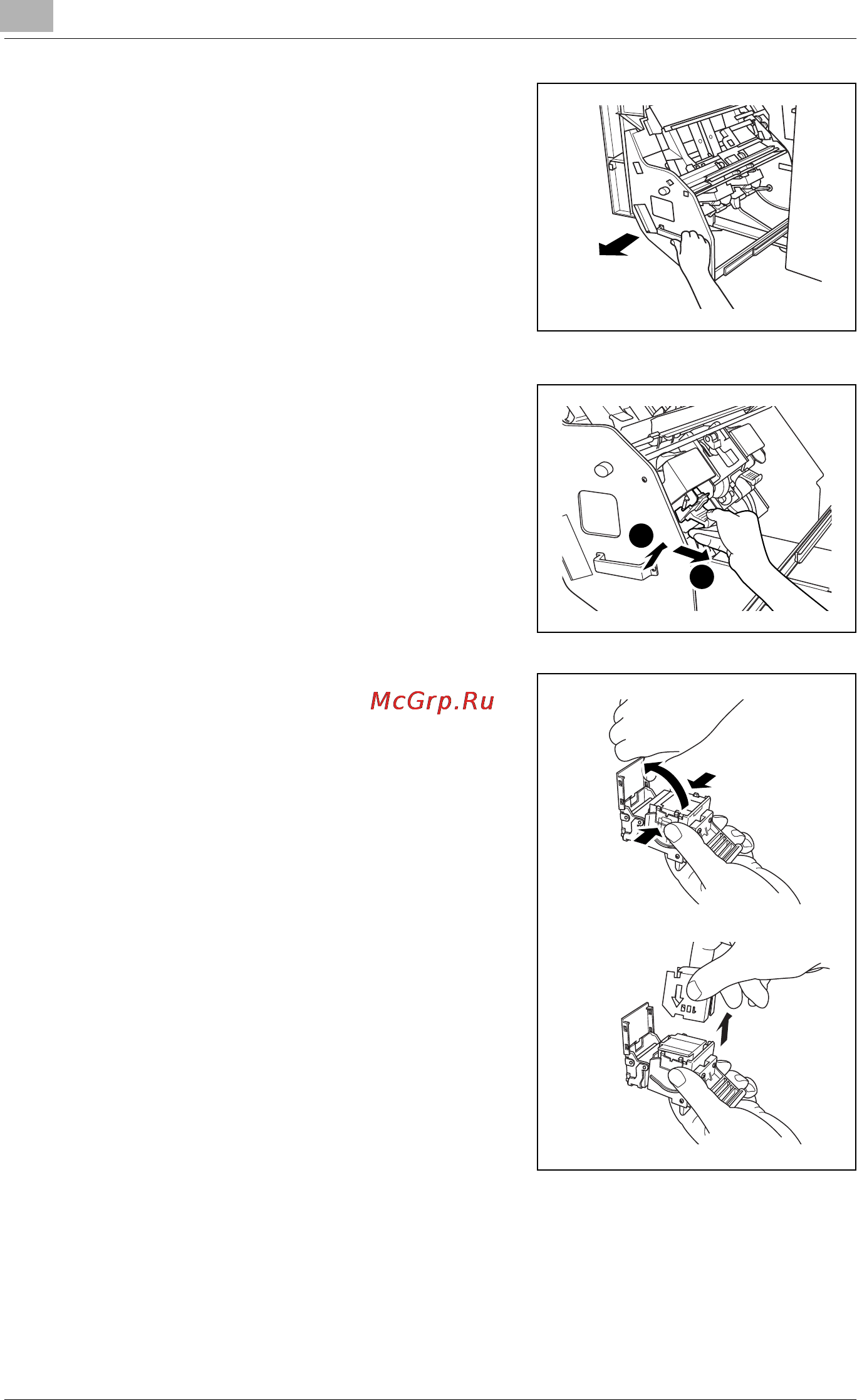

Supplies & Handling

4-18 bizhub PRO 920

2 Pull out the stacker unit slowly by

holding the stacker unit handle until it

stops.

3 Remove the cartridge housing.

– Pull up the knob of the cartridge

housing, then remove it while

pulling it forward.

4 Open the bottom of the cartridge

housing while pressing two locks on

both sides, then remove the empty

cartidge from the cartridge housing.
