4-22 bizhub PRO 920

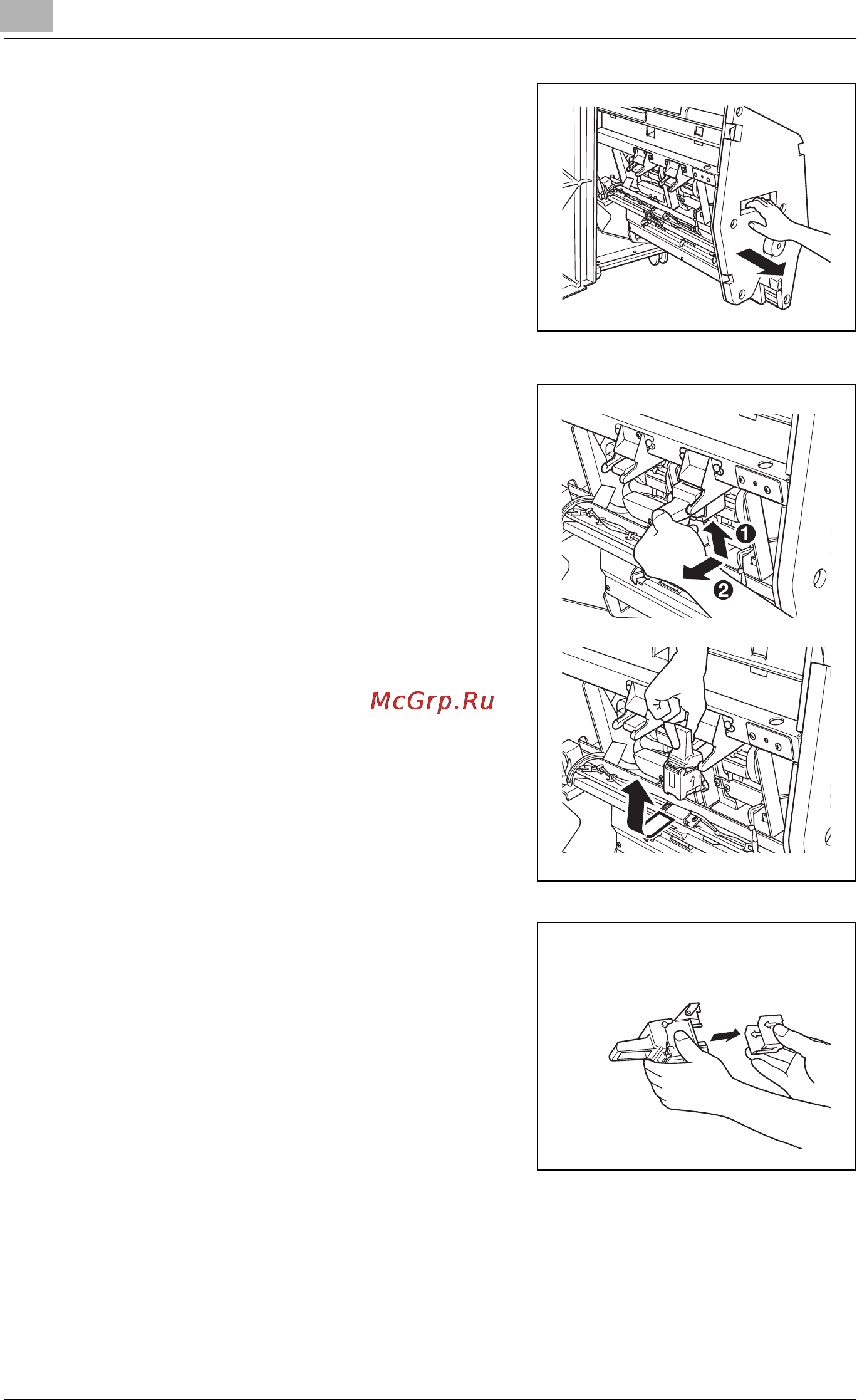

2 Pull out the stacker unit slowly by

holding the stacker unit handle until it

stops.

3 Remove the cartridge housing.

– Pull up the knob of the cartridge

housing, then remove it while

sliding it along the stapler rail.

4 Remove the empty cartridge from

the cartridge housing.
