Supplies & Handling

bizhub PRO 920 4-23

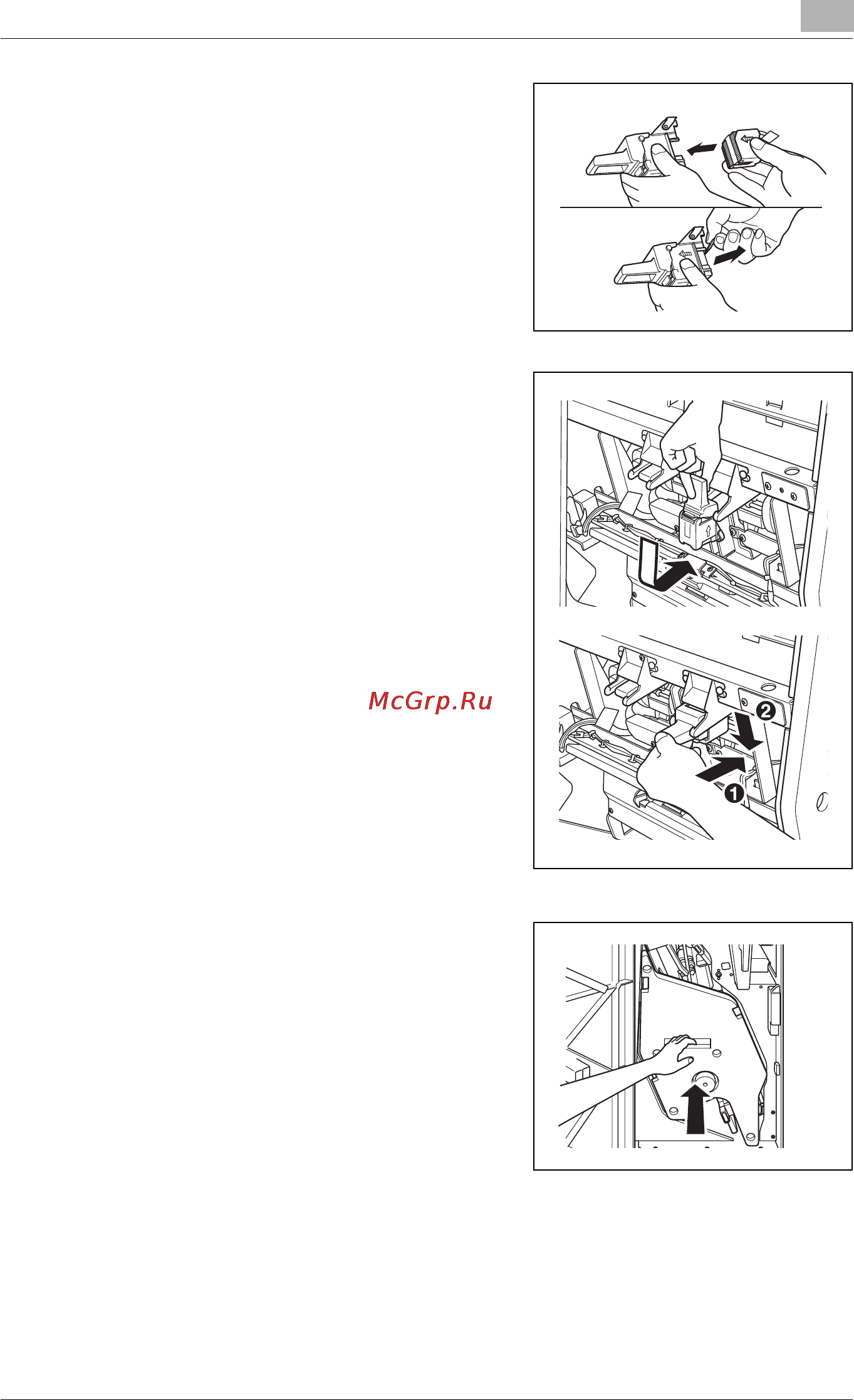

5 Insert the new staple cartridge into

the cartridge housing.

– Firmly insert the cartridge into the

housing while aligning the arrow

sides of both cartridge and

housing, then remove the lock

tape from the cartridge.

6 Insert the cartridge housing while

sliding it along the stapler rail, then

push down and in to secure it in

place.

7 Return the stacker unit to its original

position.
