Applications

bizhub PRO 920 11-11

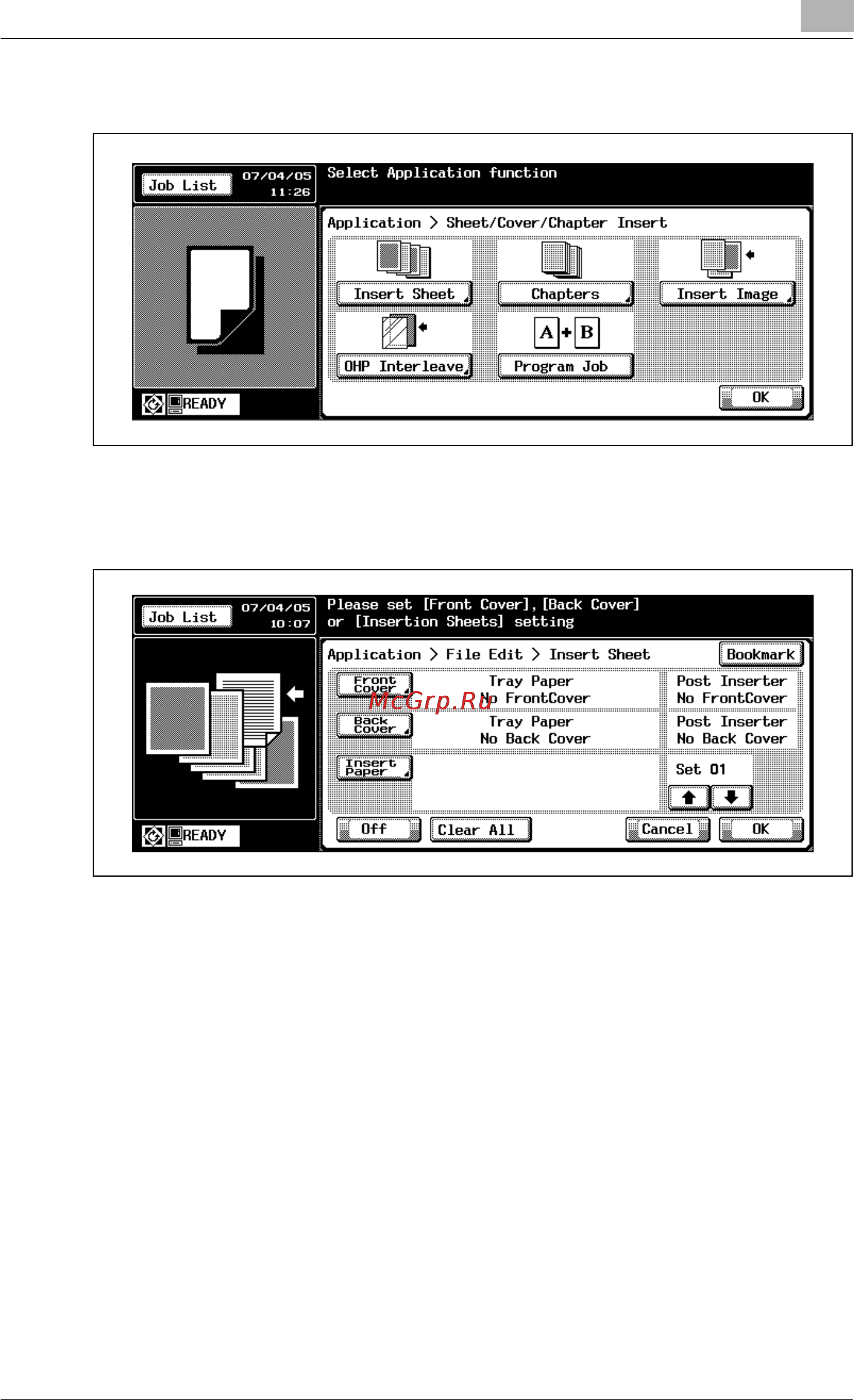

4 Touch [Insert Sheet].

The Insert Sheet Screen will be displayed.

5 Select the desired mode.

– To insert a front cover: Touch [Front Cover], then proceed to the

next step.

– To insert a back cover: Touch [Back Cover], then proceed to step 7.

– To insert the insertion sheets: Touch [Insert Paper], then proceed to

step 8.
