Applications

11-12 bizhub PRO 920

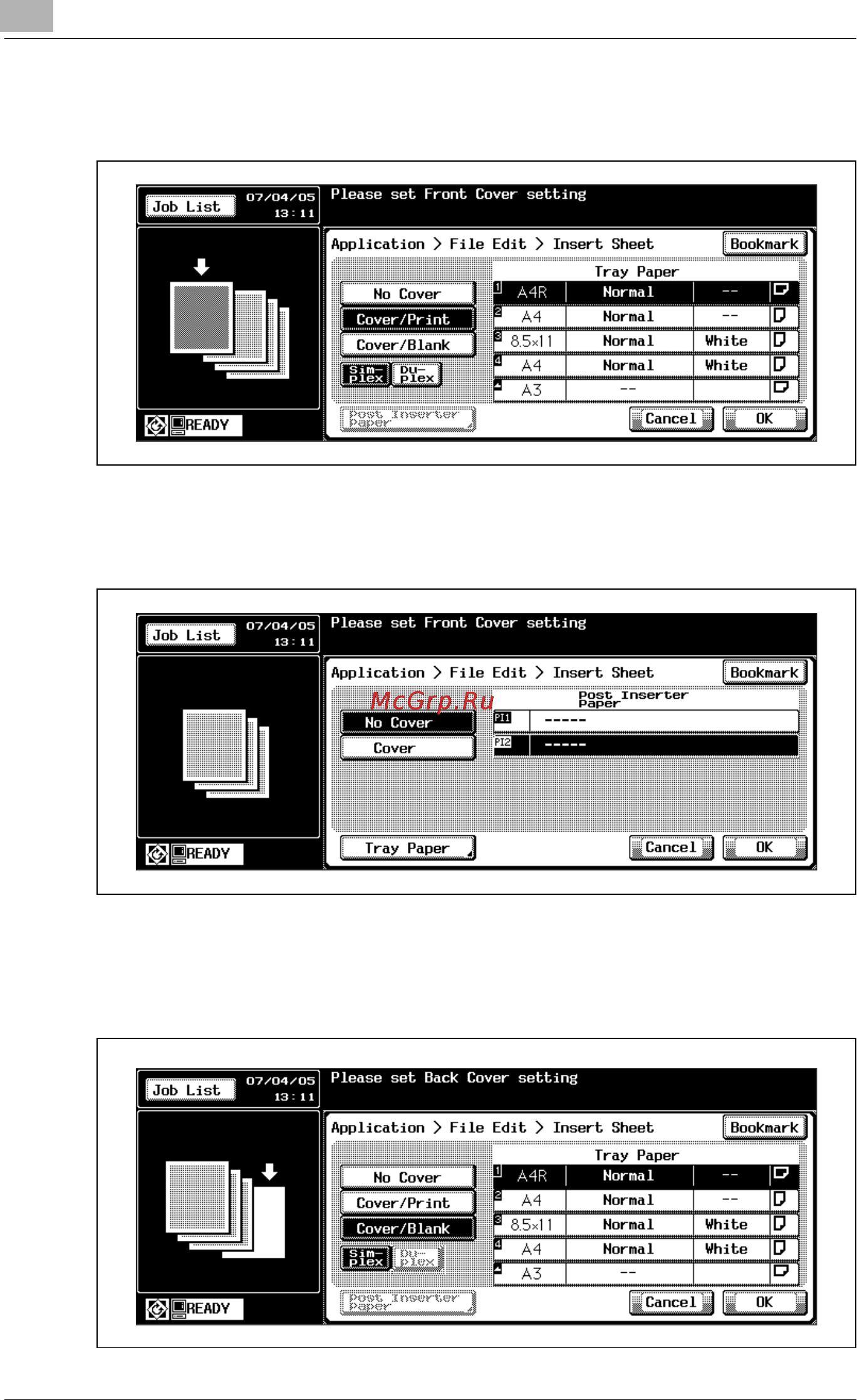

6 On the Front Cover Setting Screen, select the desired mode

(Print/Blank), copy mode (Simplex/Duplex), and tray paper to be used.

– To use covers loaded in the post inserter, touch [Post Inserter

Paper] to display the Post Inserter Paper Setting Screen, touch

[Cover], and select the tray to be used.

Touch [OK] to complete the setting and return to the previous screen.

7 On the Back Cover Setting Screen, select the desired mode

(Print/Blank), copy mode (Simplex/Duplex), and tray paper to be used.
