Applications

bizhub PRO 920 11-13

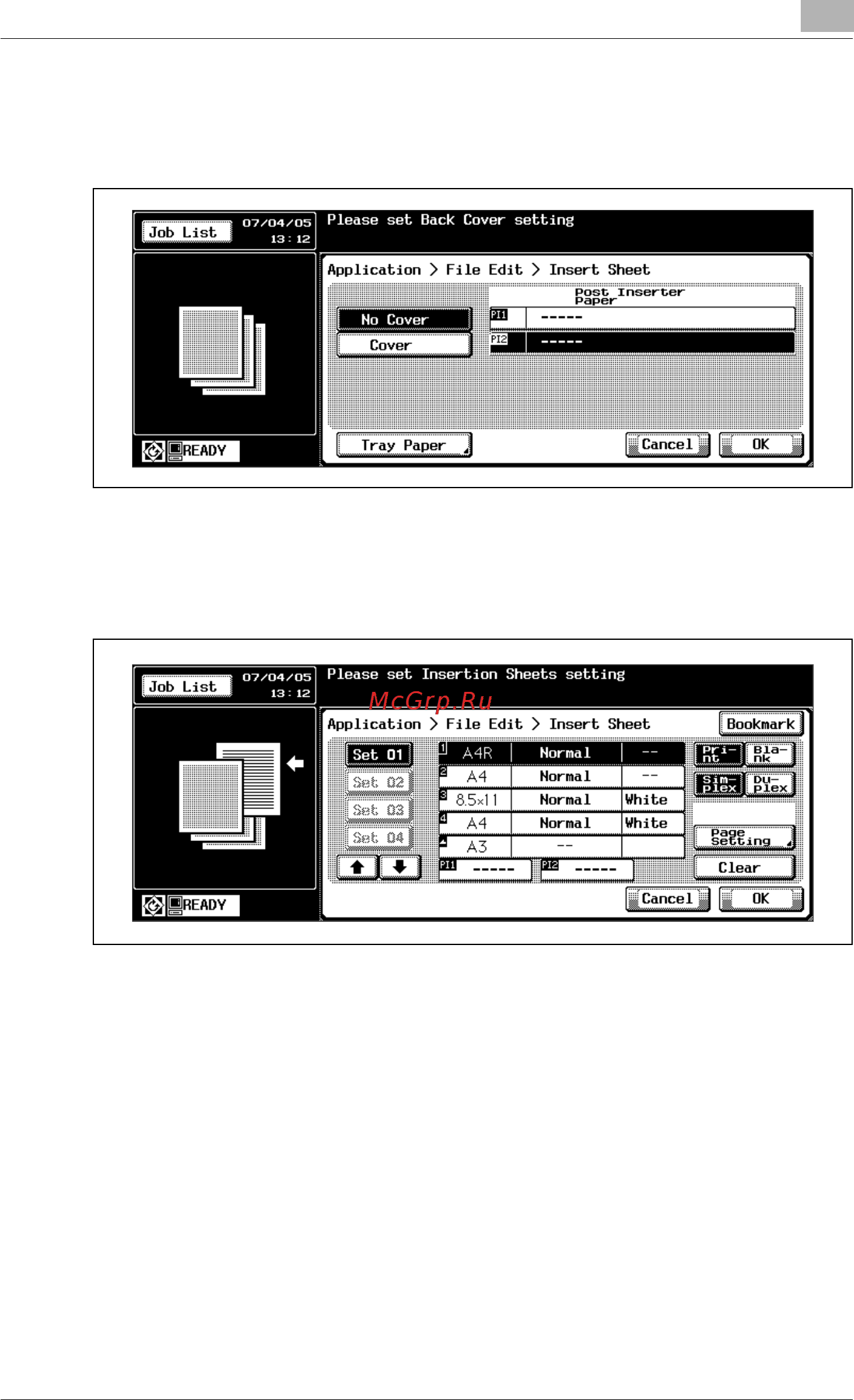

– To use covers loaded in the post inserter, touch [Post Inserter

Paper] to display the Post Inserter Paper Setting Screen, touch

[Cover], and select the tray to be used.

Touch [OK] to complete the setting and return to the previous screen.

8 On the Insert Sheet Setting Screen, enter the desired insertion type

setting.
