bizhub PRO 920 11-73

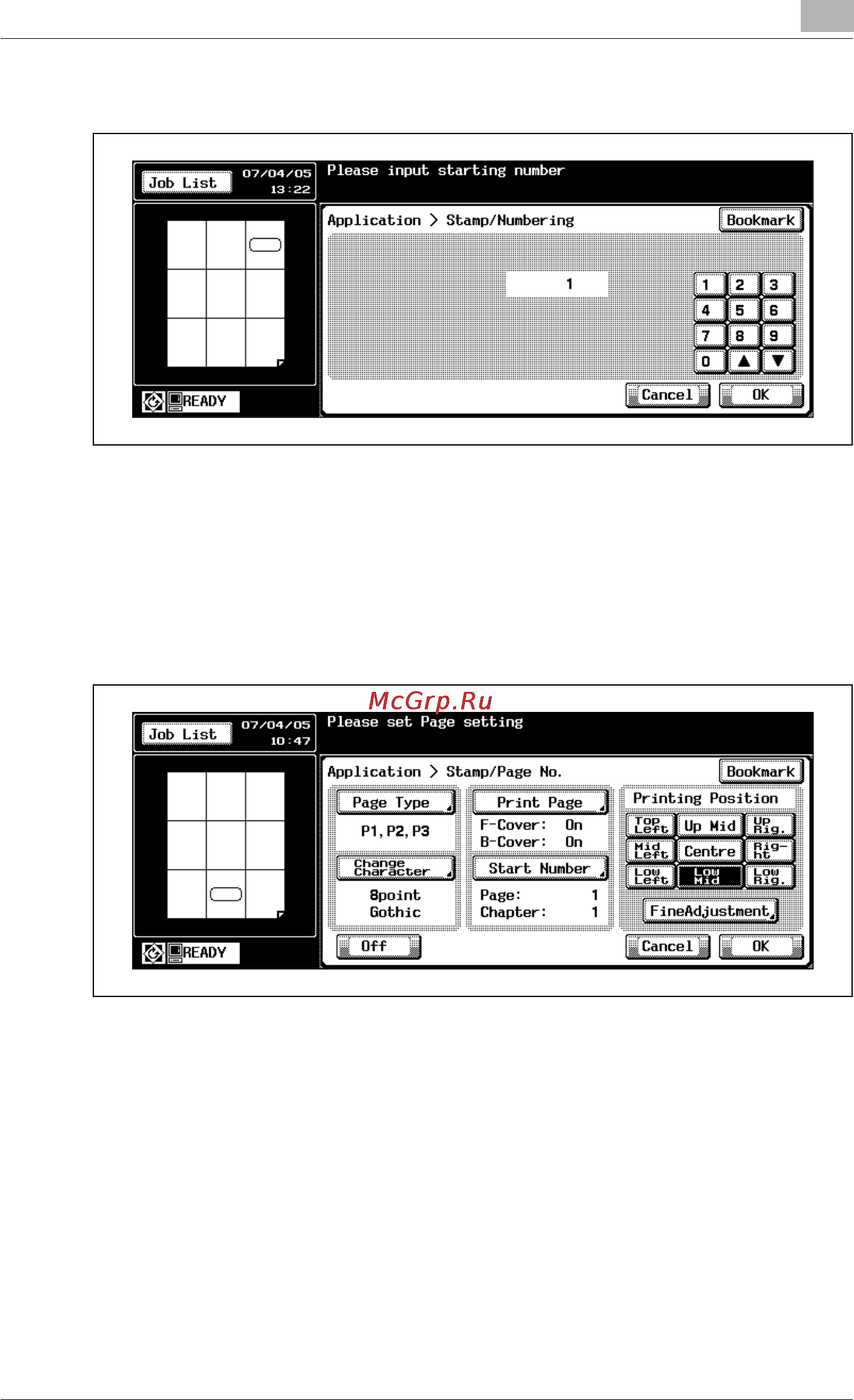

– Touch [Start Number] to designate the starting number, if required.

Use the touch panel keypad or up/down arrow key to enter the

desired starting number, then touch [OK] to return to the previous

screen.

6 When selecting [Page No.]: Specify the page number type, printing

position, character size and type, printed page and start number.
