Applications

11-74 bizhub PRO 920

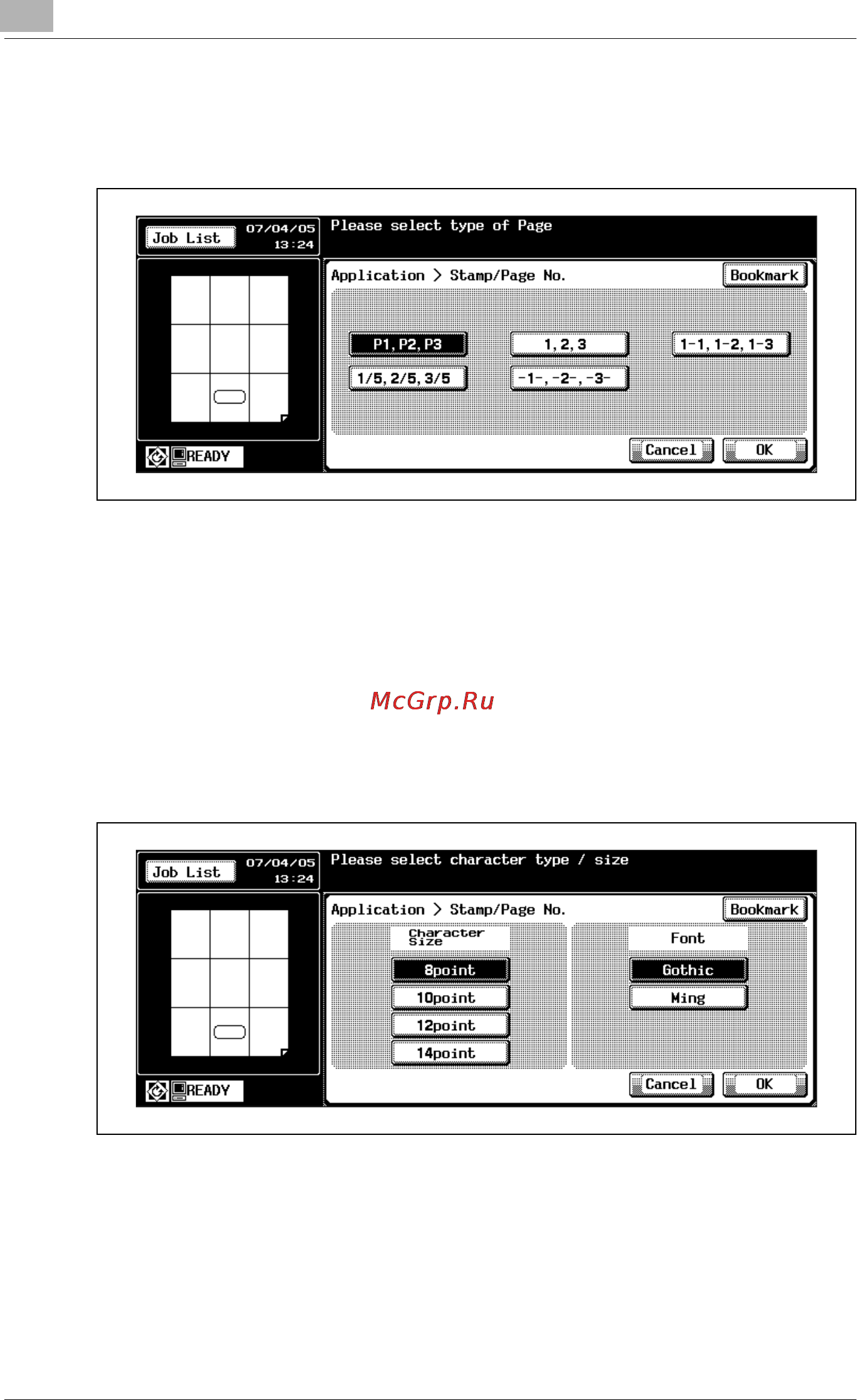

– Touch [Page Type], then select the desired page number type on

the subsequent screen. Touch [OK] to return to the previous

screen.

– Touch the desired printing position in the printing position area. If

fine adjustment is needed, touch [Fine Adjustment] to display the

Fine Adjustment Screen. See "Printing Stamp, Distribution

Number, Page Number, Date/Time onto Copies (Stamp)" on

page 11-69 for details.

– Touch [Change Character] to select the desired character size (8,

10, 12, 14 point) and type (Gothic or Ming) on the subsequent

screen. Touch [OK] to complete the setting and return to the

previous screen.
